X271 - s-lhd-sop10

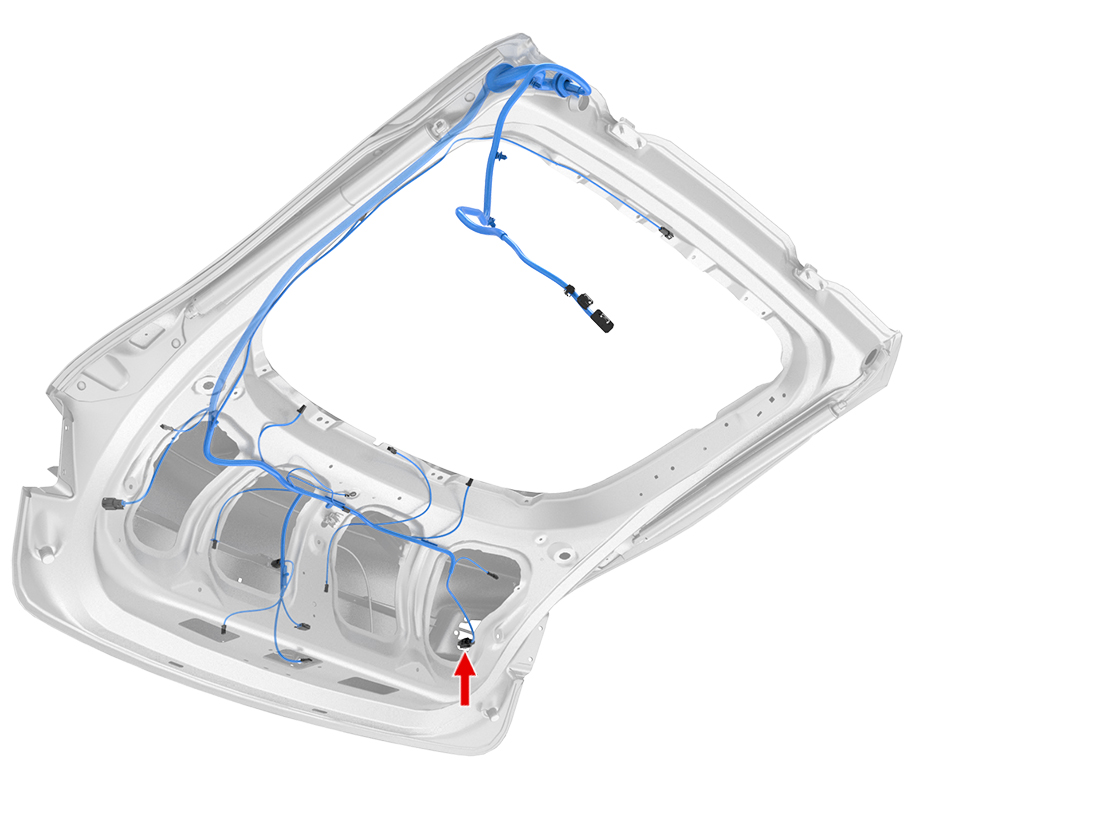

Location:

Connector Detail: MOLEX 33472-4001

Color: BK

Serviceability: Terminal Pigtail


Cavity	Color	Size	Plate	Destination	Terminal
1	RD/GY	0.5	SN	X921F-5	33012-3003
2
3	RD/BK	0.5	SN	X921F-6	33012-3003
4	BK	0.5	SN		33012-3003
