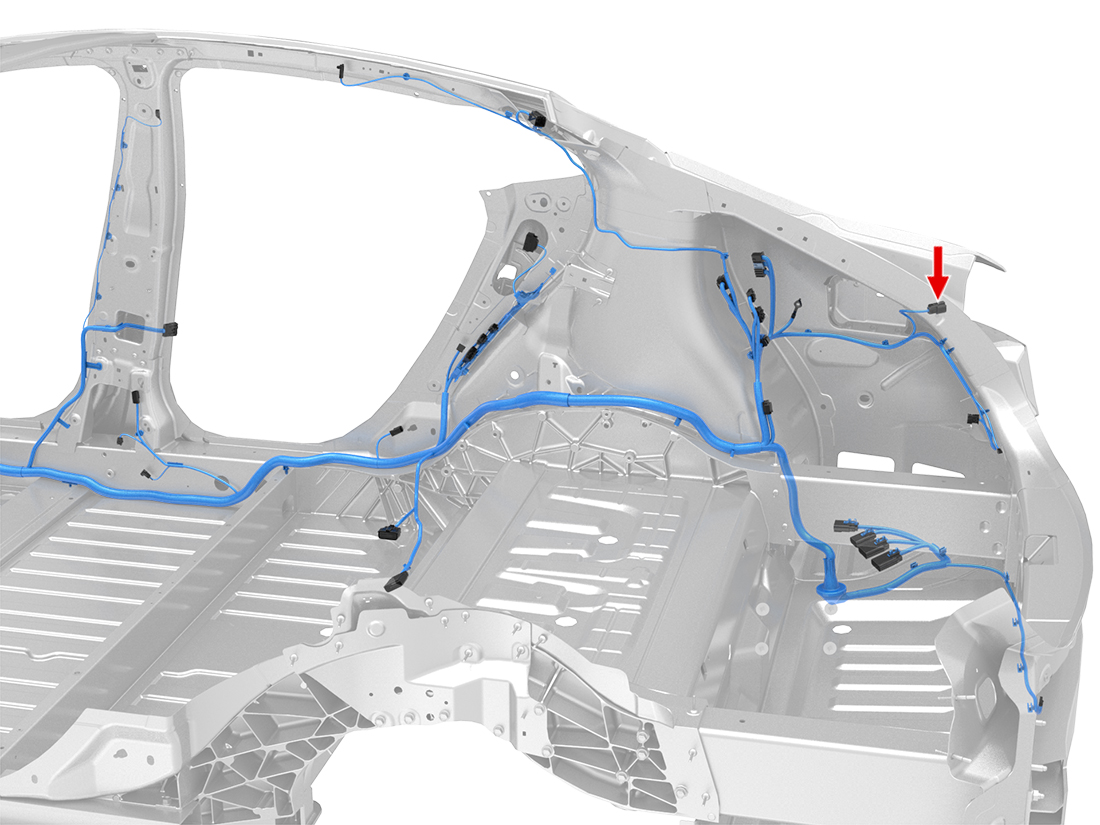

Location:
Connector Detail: MOLEX 33472-0601
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BK/VT | 0.35 | SN | X977F-4 | 33012-3002 |
| 2 | BN/WH | 0.35 | SN | 33012-3002 | |
| 3 | YE/WH | 0.35 | SN | X977F-5 | 33012-3002 |
| 4 | RD/BK | 0.35 | SN | X988F-26 | 33012-3002 |
| 5 | BK | 0.75 | SN | G700-1 | 33012-3002 |
| 6 |
