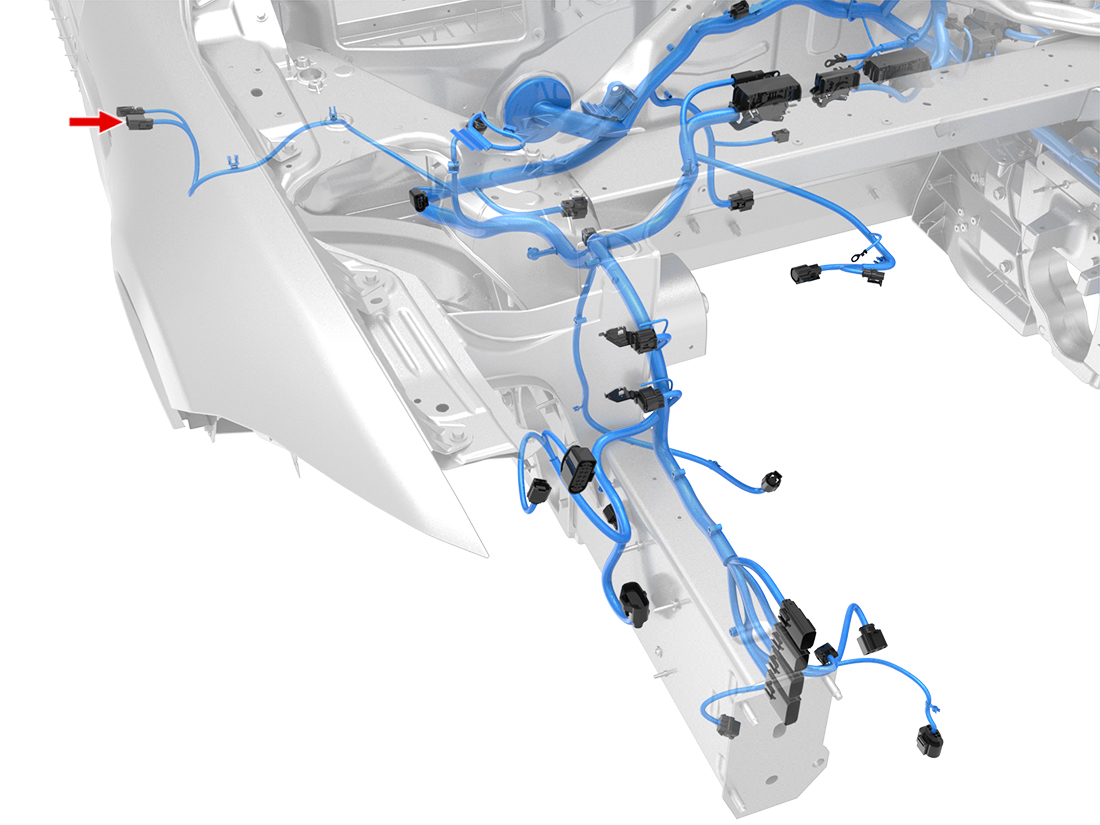

Location:
Connector Detail: YAZAKI 7283-4110-40
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | RD/GN | 0.35 | X955F-19 | |
| 2 | BK | 0.35 | G520-1 |
X277 - s-lhd-sop10
2012-2020 Model S Connector Reference
