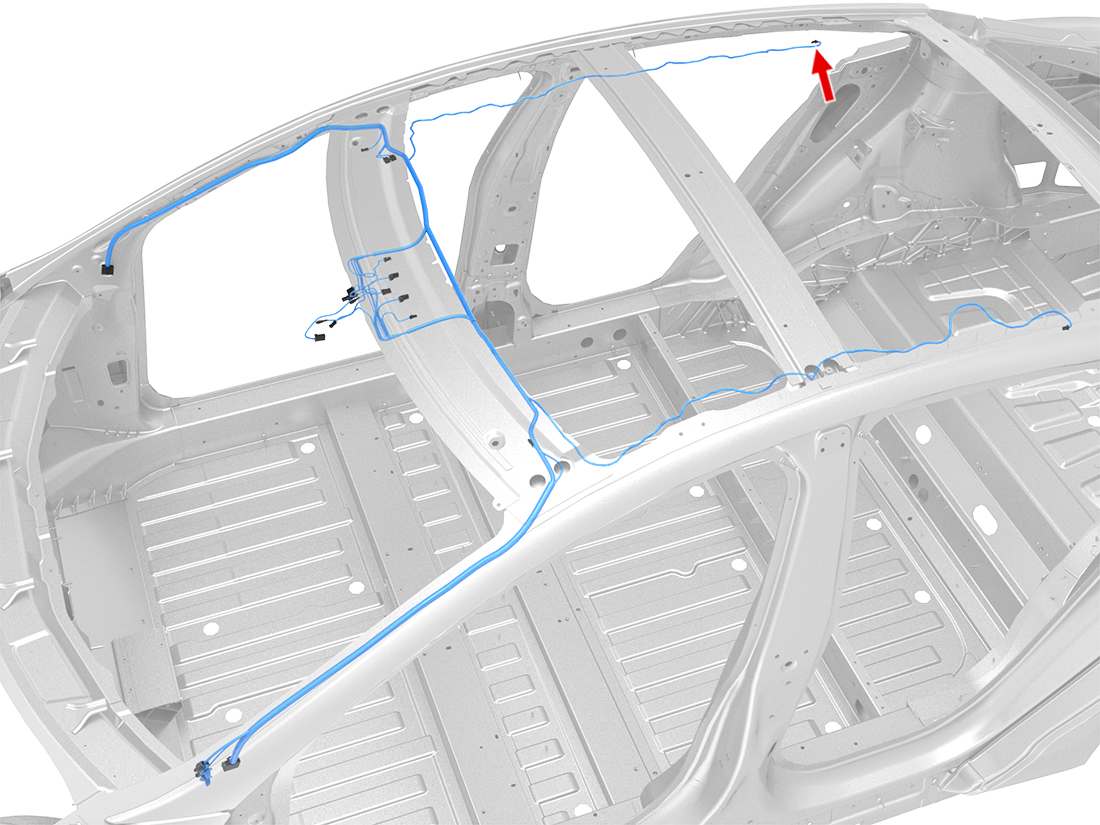

Location:

Connector Detail: MOLEX 50-57-9703

Color: BK

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD/WH	0.35	SN	X967F-19	16-02-0086
2	BK	0.35	SN		16-02-0086
3	WH/BU	0.35	SN	X967F-18	16-02-0086
