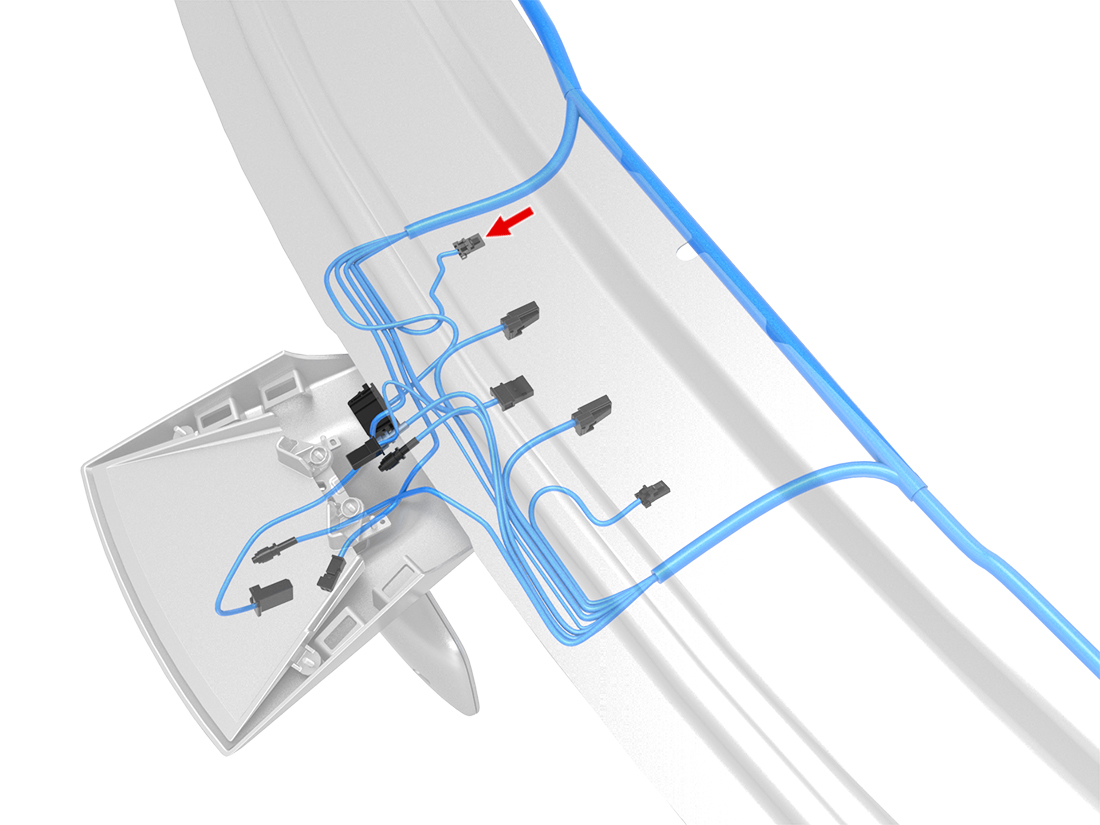

Location:
Connector Detail: MOLEX 50-57-9703
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | RD/BK | 0.35 | X967F-15 | |
| 2 | BK | 0.35 | ||
| 3 | BU | 0.35 | X967F-14 |
X285 - s-lhd-sop10
2012-2020 Model S Connector Reference
