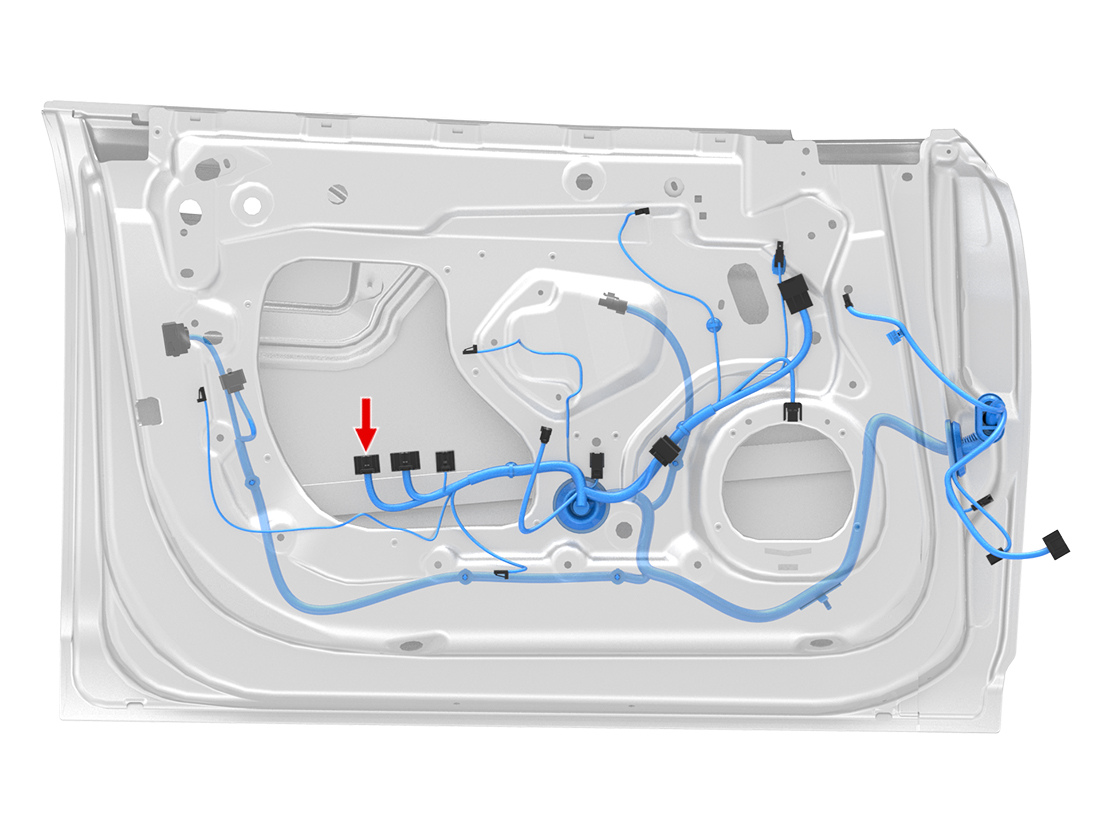

Location:

Connector Detail: JAE MX34024SF1

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	GY	0.35	SN	X312-3	M34S75C4F1
2	RD	0.35	SN	X943F-7	M34S75C4F1
3	GN/WH	0.35	SN	X928F-9	M34S75C4F1
4	VT	0.35	SN		M34S75C4F1
5	GY/WH	0.35	SN	X312-7	M34S75C4F1
6
7	YE	0.35	SN	X307-2	M34S75C4F1
8	RD	0.35	SN	X306-3	M34S75C4F1
9	GY	0.35	SN		M34S75C4F1
10	RD/YE	0.35	SN	X316-2	M34S75C4F1
11	WH/BU	0.35	SN	X316-12	M34S75C4F1
12	BN	0.35	SN	X316-10	M34S75C4F1
13
14	WH	0.35	SN	X943F-9	M34S75C4F1
15	BN/WH	0.35	SN	X928F-2	M34S75C4F1
16	WH	0.35	SN	X928F-1	M34S75C4F1
17
18	WH/BU	0.35	SN	X310-5	M34S75C4F1
19	OG/BK	0.35	SN	X306-2	M34S75C4F1
20	WH	0.35	SN		M34S75C4F1
21	BK	0.35	SN	X312-4	M34S75C4F1
22	BK/GY	0.35	SN	X928F-4	M34S75C4F1
23	BU	0.35	SN	X316-3	M34S75C4F1
24	GN	0.35	SN	X316-20	M34S75C4F1
