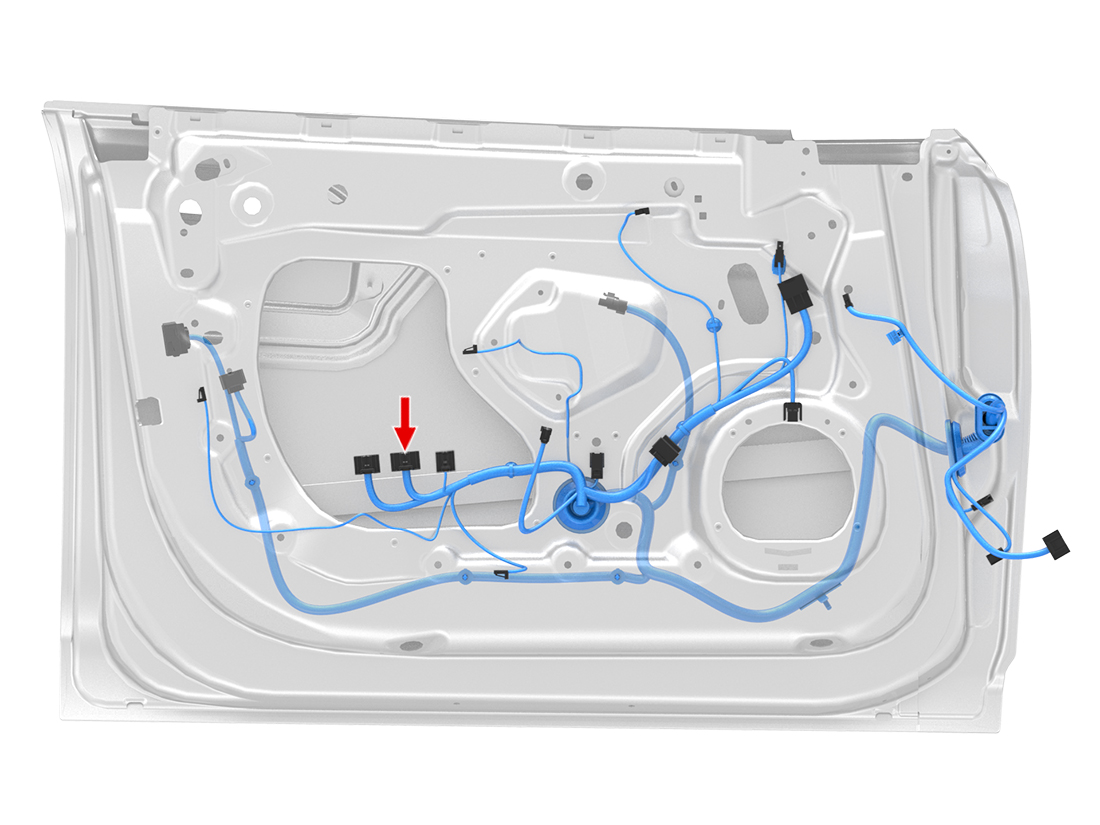

Location:

Connector Detail: JAE MX34028SF1

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1
2	OG	0.35	SN	X928F-3	M34S75C4F1
3	GN	0.35	SN		M34S75C4F1
4	RD/GY	0.35	SN	X316-1	M34S75C4F1
5	RD/VT	0.35	SN	X316-7	M34S75C4F1
6	RD/GN	0.35	SN	X316-8	M34S75C4F1
7
8	RD/BK	0.35	SN	X316-5	M34S75C4F1
9
10
11
12
13
14	RD	0.35	SN	X488-1	M34S75C4F1
15	BN	0.35	SN	X943F-15	M34S75C4F1
16	BN/WH	0.35	SN	X943F-6	M34S75C4F1
17
18	GY	0.35	SN	X316-11	M34S75C4F1
19	YE/WH	0.35	SN	X316-17	M34S75C4F1
20
21	WH/BK	0.35	SN	X316-18	M34S75C4F1
22	BK	0.35	SN	X943F-13	M34S75C4F1
23	GY/WH	0.35	SN	X928F-7	M34S75C4F1
24
25
26
27	SI	0.35	SN		M34S75C4F1
28	BK	0.35	SN	X488-3	M34S75C4F1
