X303 - s-lhd-sop10

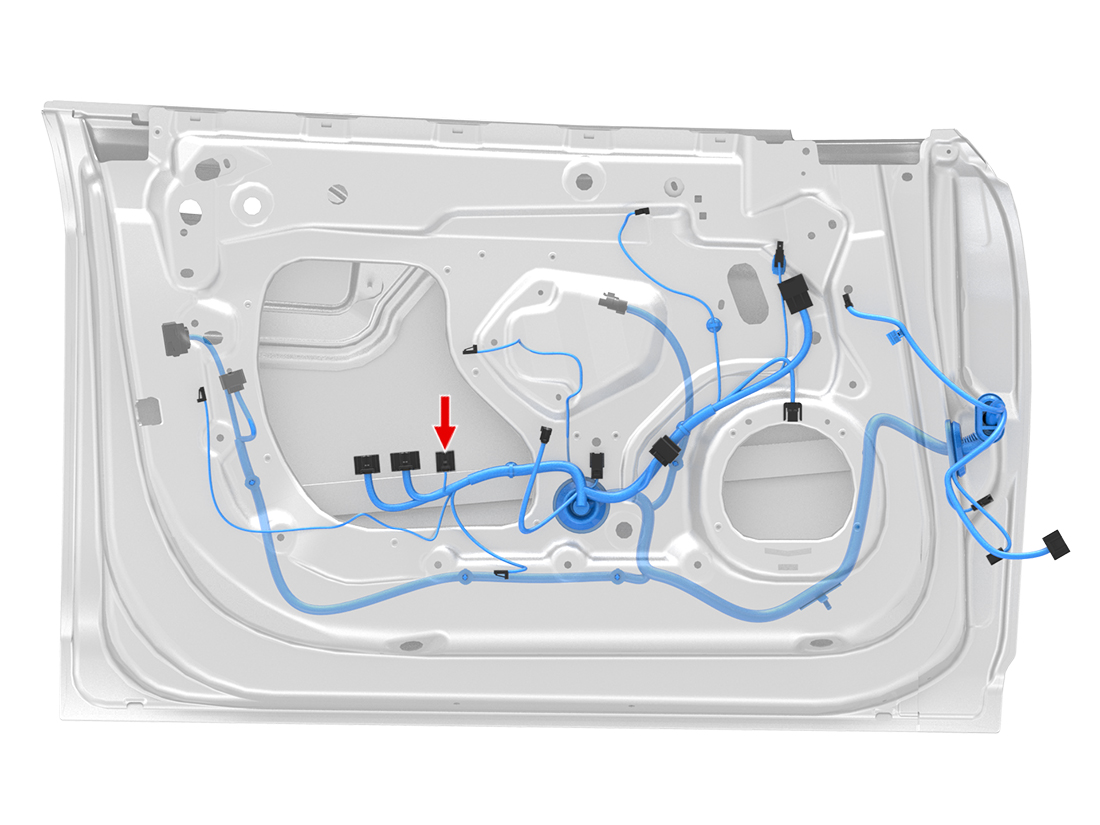

Location:

Connector Detail: MOLEX 31372-1000

Color: BK

Serviceability: Terminal Pigtail


Cavity	Color	Size	Plate	Destination	Terminal
1	YE/WH	0.35	SN	X943F-3	1326030-2
2
3
4
5
6
7	RD	0.5	SN		1326030-2
8
9
10	BK	0.5	SN		1326030-2
