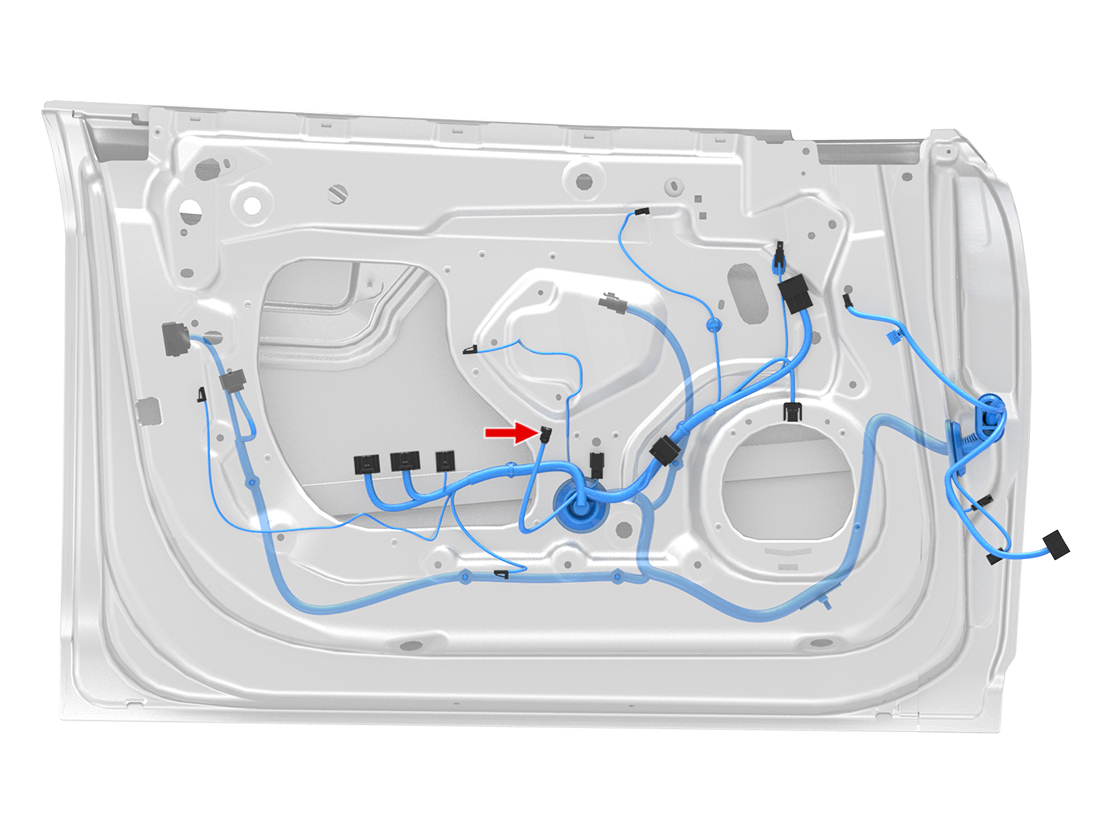

Location:
Connector Detail: AMP 3-929169-1
Color: BU
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | WH | 0.35 | ||
| 2 | OG/BK | 0.35 | X301-19 | |
| 3 | RD | 0.35 | X301-8 |
X306 - s-lhd-sop10
2012-2020 Model S Connector Reference
