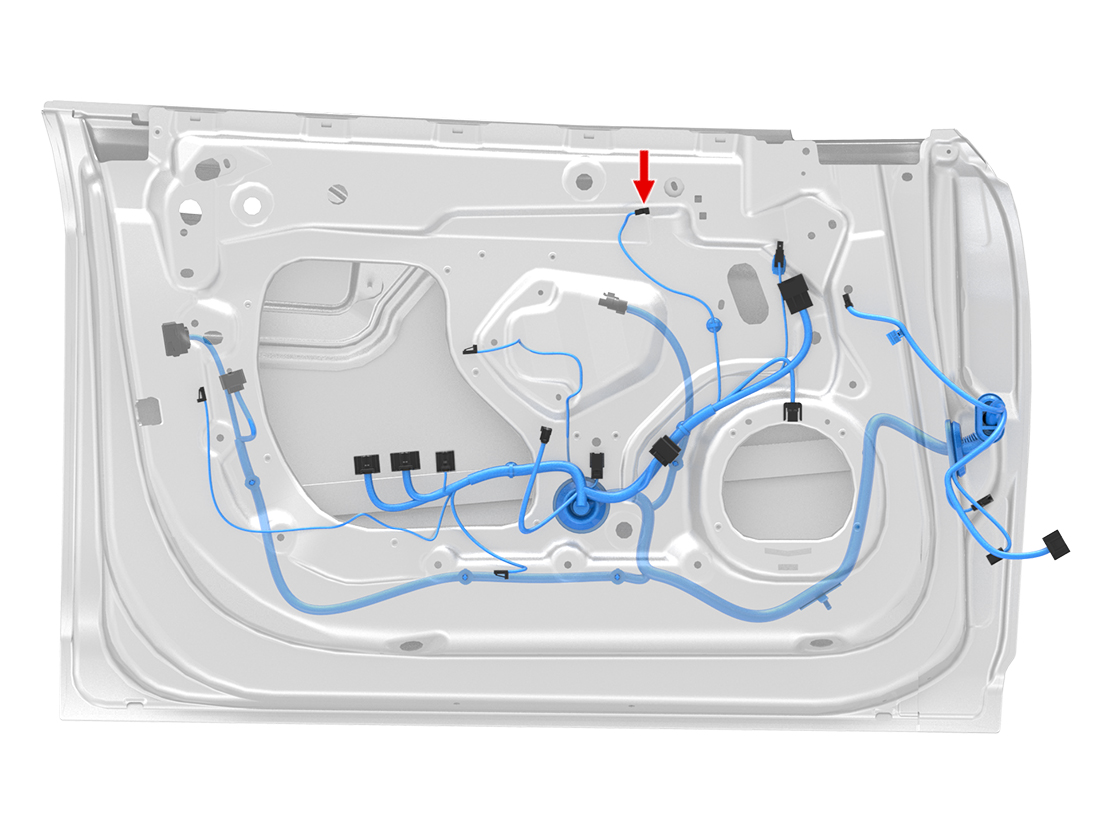

Location:
Connector Detail: AMP 1-1718333-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BK | 0.35 | SN | 5-928999-1 | |
| 2 | YE | 0.35 | SN | X301-7 | 5-928999-1 |
X307 - s-lhd-sop10
2012-2020 Model S Connector Reference
