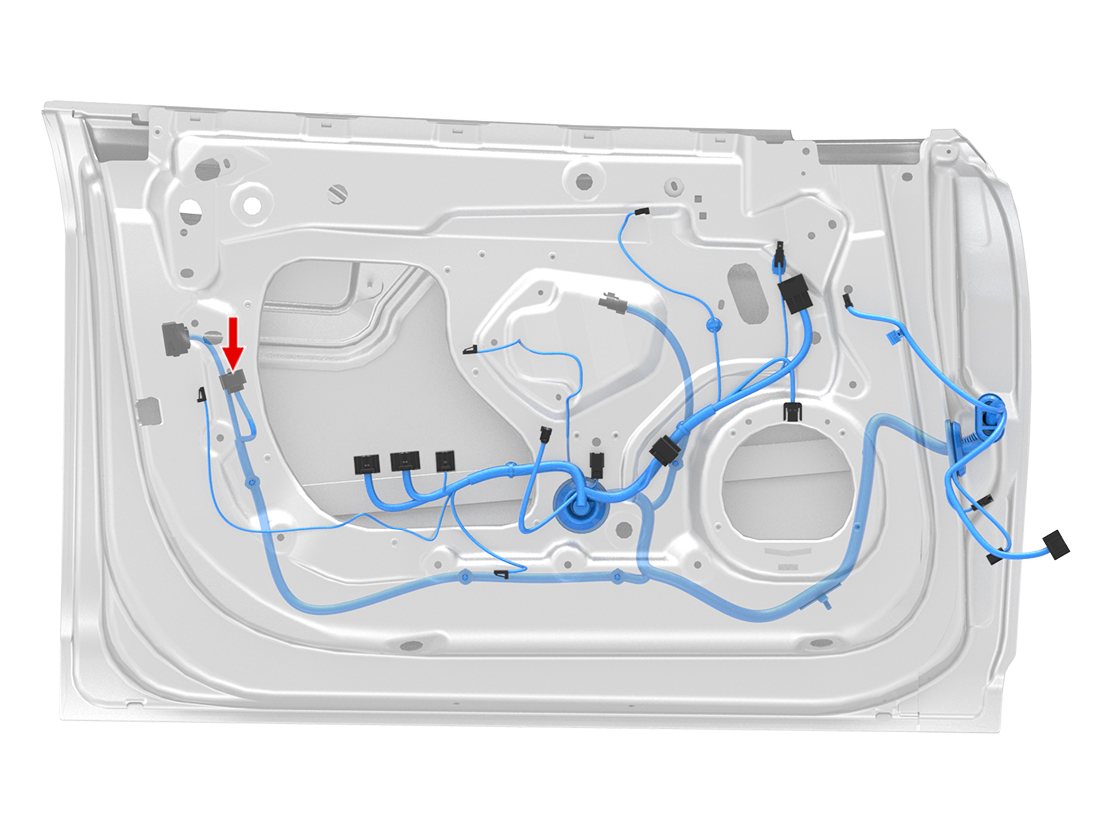

Location:
Connector Detail: YAZAKI 7283-8856-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | RD | 0.35 | SN | 7116-4415-02 | |
| 2 | BK | 0.35 | SN | 7116-4415-02 | |
| 3 | |||||
| 4 | |||||
| 5 | WH/BU | 0.35 | SN | X301-18 | 7116-4415-02 |
| 6 | |||||
| 7 | |||||
| 8 | |||||
| 9 | |||||
| 10 | WH | 0.35 | SN | X366-5 | 7116-4415-02 |
