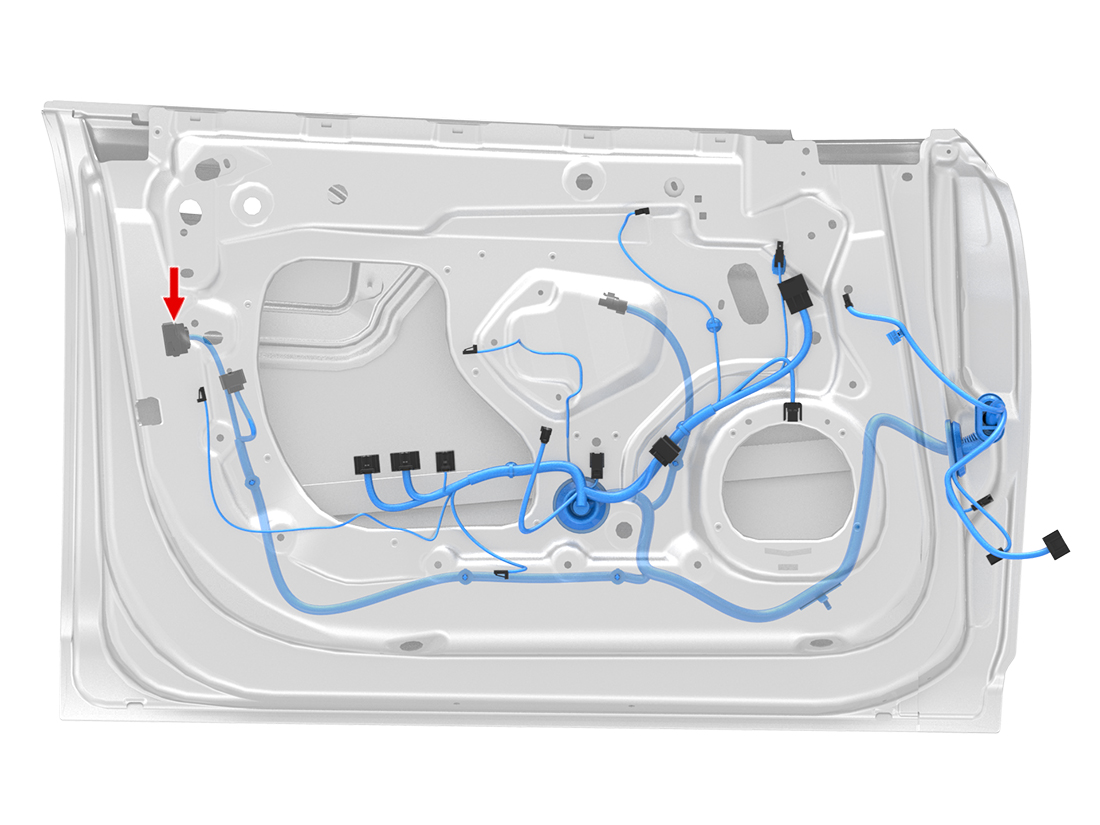

Location:

Connector Detail: AMP 6-1355688-5

Color: BK

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1
2
3	GY	0.35	AU	X301-1	969005-3
4	BK	0.35	AU	X301-21	969005-3
5
6	OG	0.35	AU		969005-3
7	GY/WH	0.35	AU	X301-5	969005-3
8	BK	0.35	AU		969005-3
9
10
