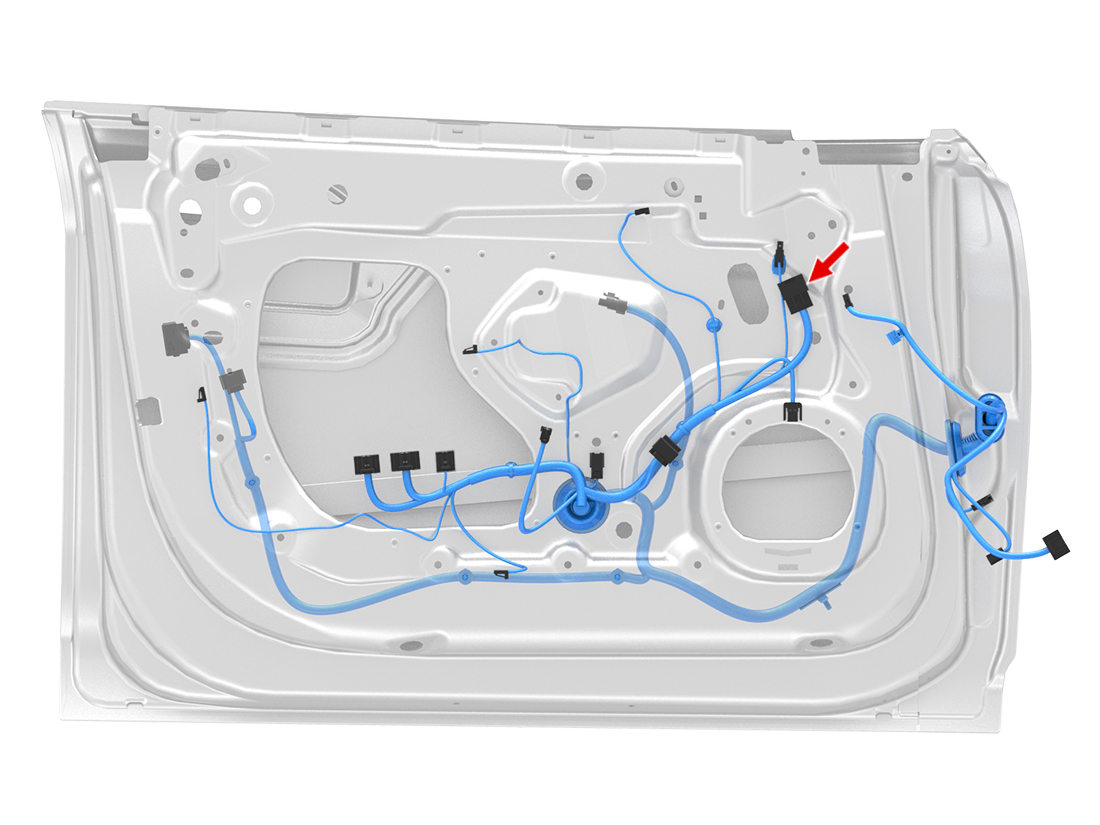

Location:

Connector Detail: YAZAKI 7282-6568-40

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD/GY	0.35	SN	X302-4	7114-4720-02
2	RD/YE	0.35	SN	X301-10	7114-4720-02
3	BU	0.35	SN	X301-23	7114-4720-02
4
5	RD/BK	0.35	SN	X302-8	7114-4720-02
6	OG	0.35	SN	X943F-8	7114-4720-02
7	RD/VT	0.35	SN	X302-5	7114-4720-02
8	RD/GN	0.35	SN	X302-6	7114-4720-02
9
10	BN	0.35	SN	X301-12	7114-4720-02
11	GY	0.35	SN	X302-18	7114-4720-02
12	WH/BU	0.35	SN	X301-11	7114-4720-02
13
14
15	BK	0.35	SN		7114-4720-02
16	GN	0.35	SN	X943F-16	7114-4720-02
17	YE/WH	0.35	SN	X302-19	7114-4720-02
18	WH/BK	0.35	SN	X302-21	7114-4720-02
19
20	GN	0.35	SN	X301-24	7114-4720-02
