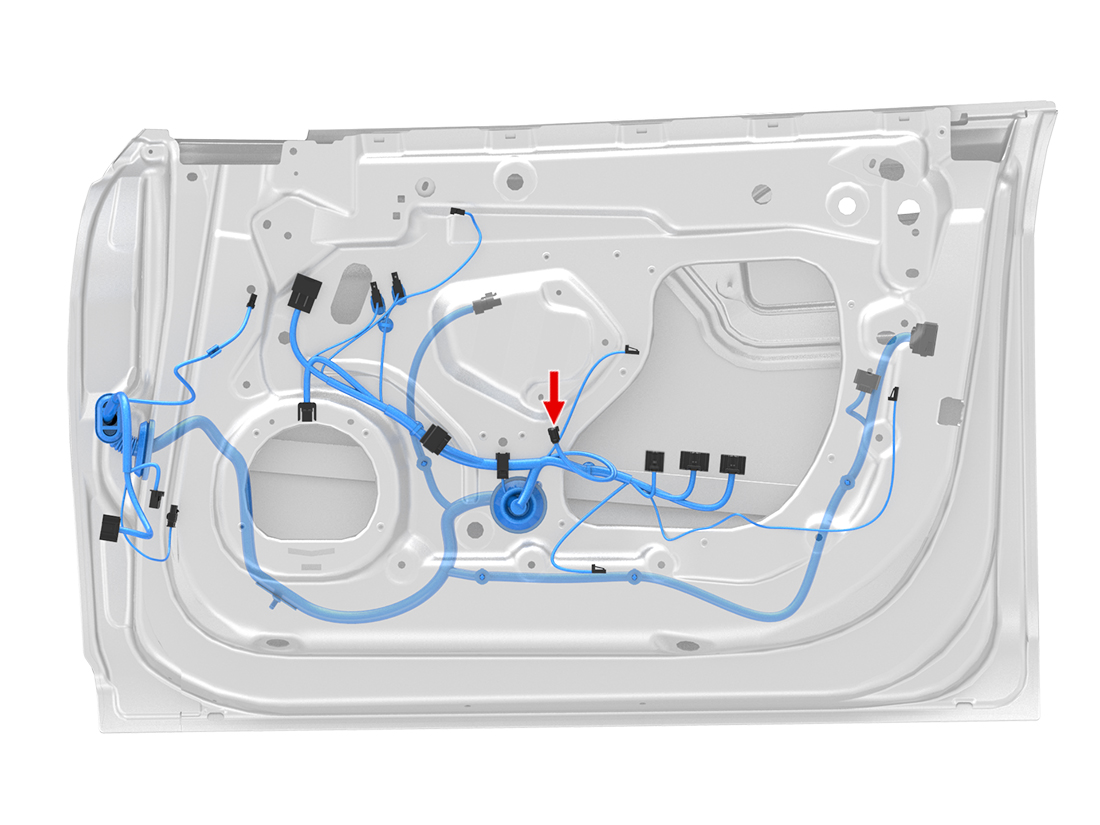

Location:

Connector Detail: AMP 2-929170-4

Color: WH

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	WH/BK	0.5	SN	X345-6	5-928999-1
2	BK	0.35	SN		5-928999-1
3	GY	0.35	SN		5-928999-1
4	YE/WH	0.5	SN	X345-1	5-928999-1
