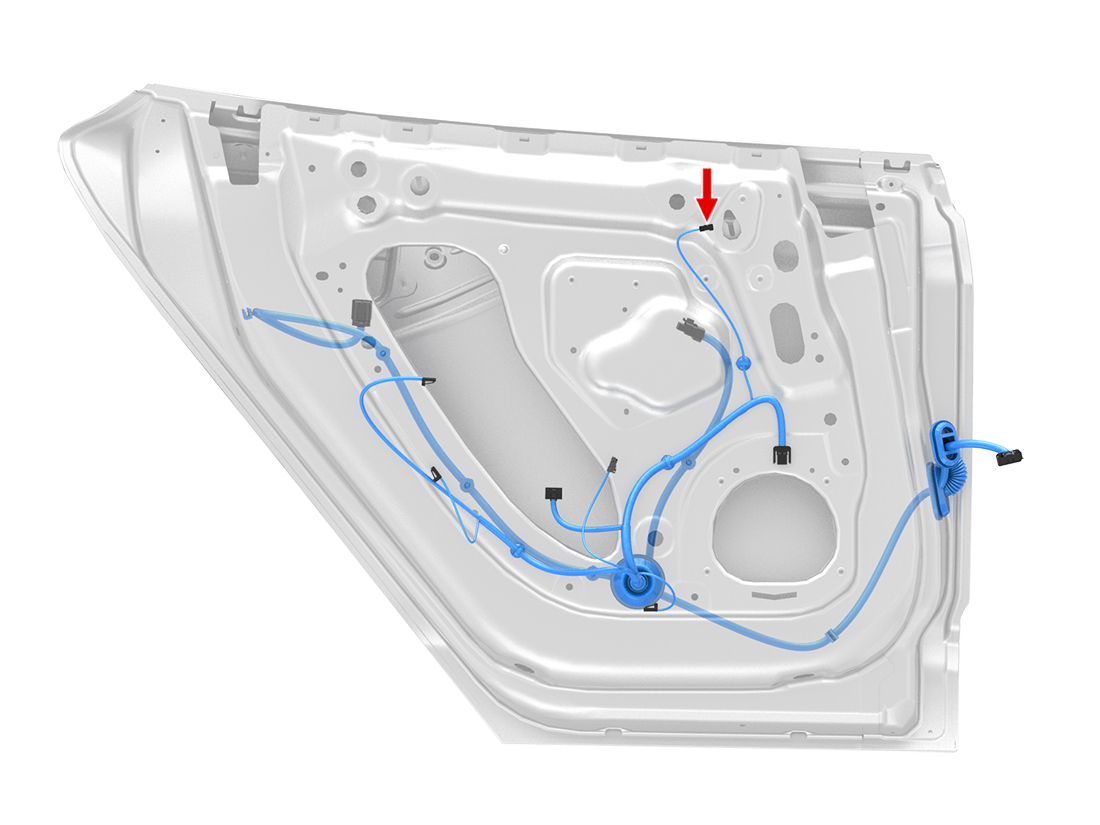

Location:
Connector Detail: AMP 1-1718333-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | RD/WH | 0.35 | SN | X945F-8 | 5-928999-1 |
| 2 | BK | 0.35 | SN | 5-928999-1 |
X361 - s-lhd-sop10
2012-2020 Model S Connector Reference
