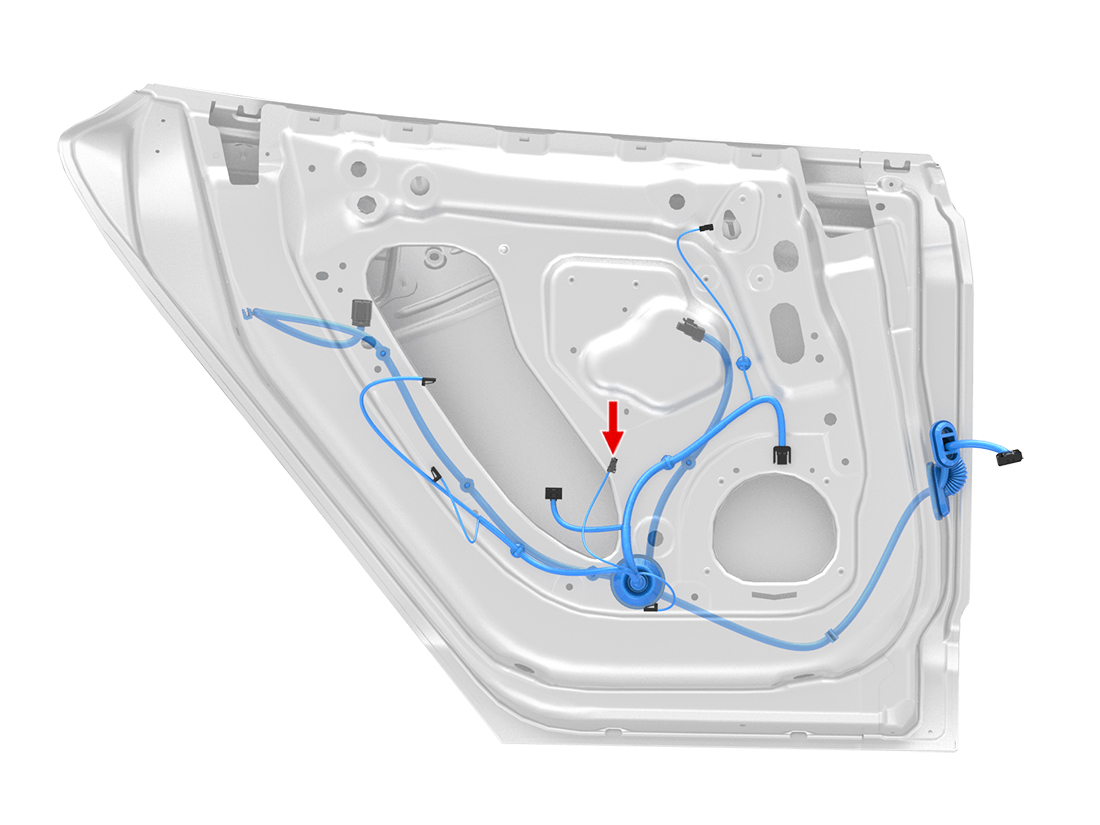

Location:
Connector Detail: AMP 2-929170-4
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | WH/BK | 0.5 | SN | X366-6 | 5-928999-1 |
| 2 | BK | 0.35 | SN | 5-928999-1 | |
| 3 | GY | 0.35 | SN | X945F-16 | 5-928999-1 |
| 4 | YE/WH | 0.5 | SN | X366-1 | 5-928999-1 |
