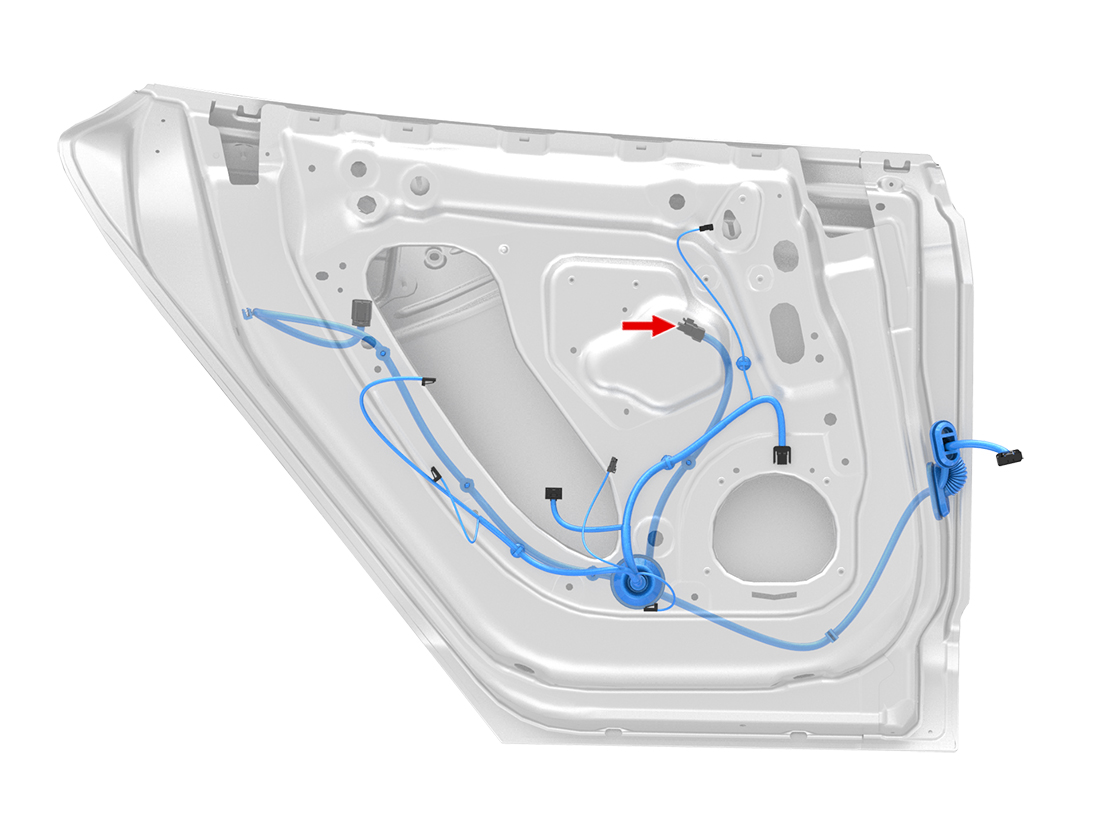

Location:
Connector Detail: FCI 211PC069S8049
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | YE/WH | 0.5 | SN | X365-4 | 211CC2S1160P |
| 2 | VT/WH | 0.5 | SN | X945F-17 | 211CC2S1160P |
| 3 | RD/GN | 1.5 | SN | X945F-1 | 211CC2S1160P |
| 4 | BK | 2 | SN | 211CC2S1160P | |
| 5 | WH | 0.35 | SN | X310-10 | 211CC2S1160P |
| 6 | WH/BK | 0.5 | SN | X365-1 | 211CC2S1160P |
