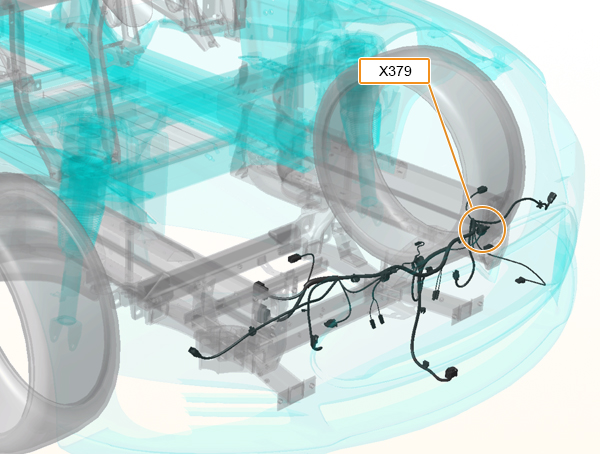

Location:
Connector Detail: AEES E-3550
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | RD/YE | 0.5 | SN | X966F-7 | 7116-4102-02 |
| 2 | BK | 0.5 | SN | 7116-4102-02 |
X379 - s-lhd-sop10
2012-2020 Model S Connector Reference
