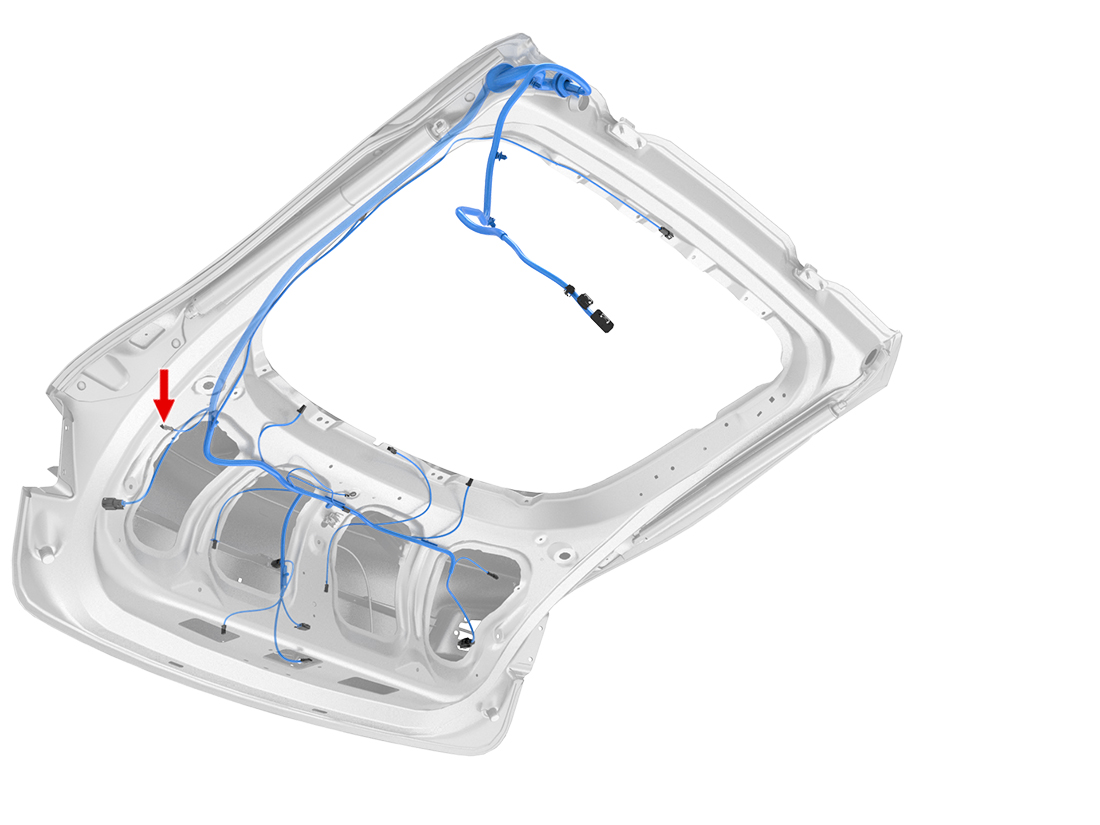

Location:
Connector Detail: AMP 178602-2
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | GY | 0.35 | SN | X922F-13 | 173633-2 |
| 2 | WH/BK | 0.35 | SN | 173633-2 |
X390 - s-lhd-sop10
2012-2020 Model S Connector Reference
