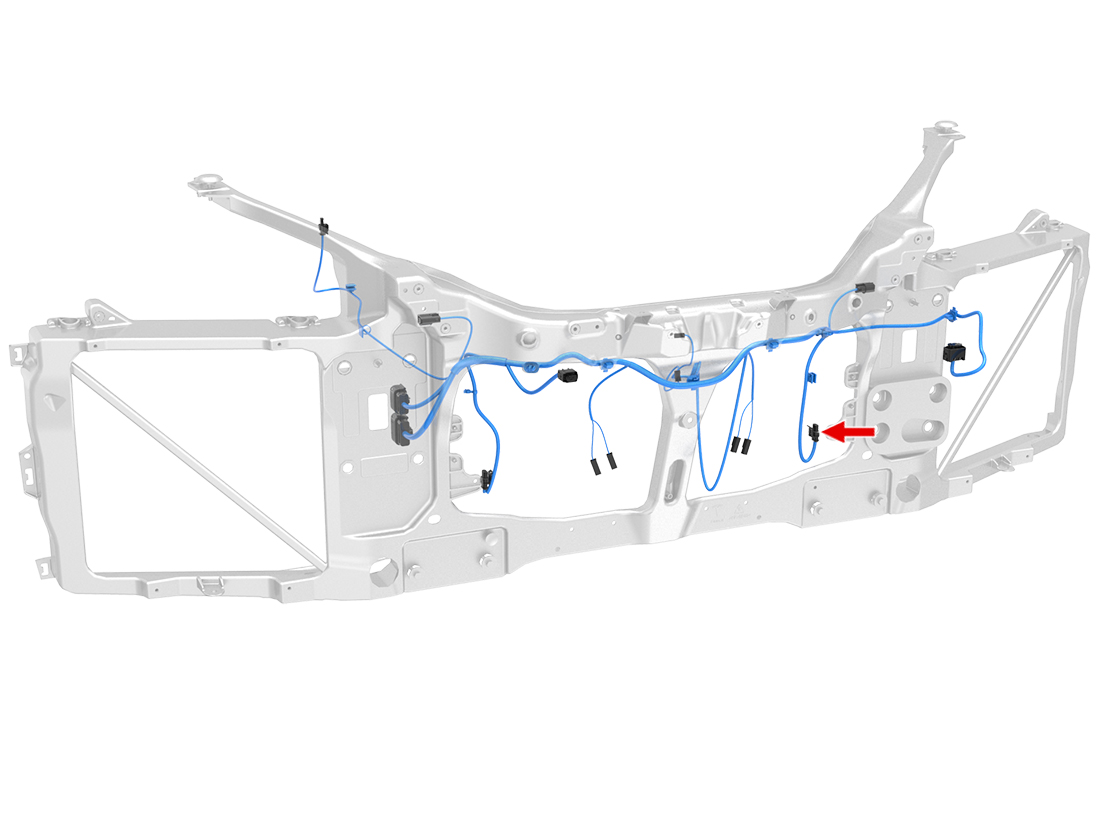

Location:
Connector Detail: AMP 282080-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | GY/WH | 0.5 | X966F-20 | |
| 2 | RD/GN | 0.5 | X966F-19 |
X392 - s-lhd-sop10
2012-2020 Model S Connector Reference
