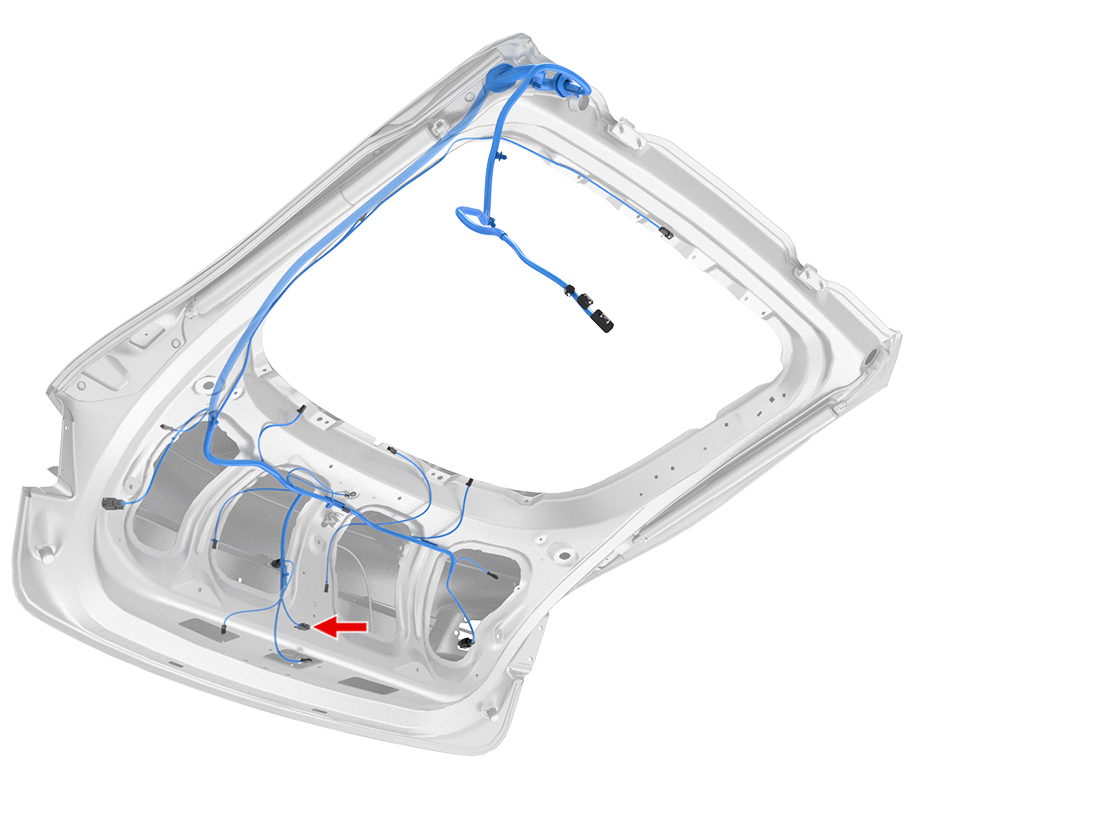

Location:
Connector Detail: AMP 1355390-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BN | 0.35 | SN | X922F-5 | 964280-2 |
| 2 | BN/WH | 0.35 | SN | X922F-14 | 964280-2 |
X396 - s-lhd-sop10
2012-2020 Model S Connector Reference
