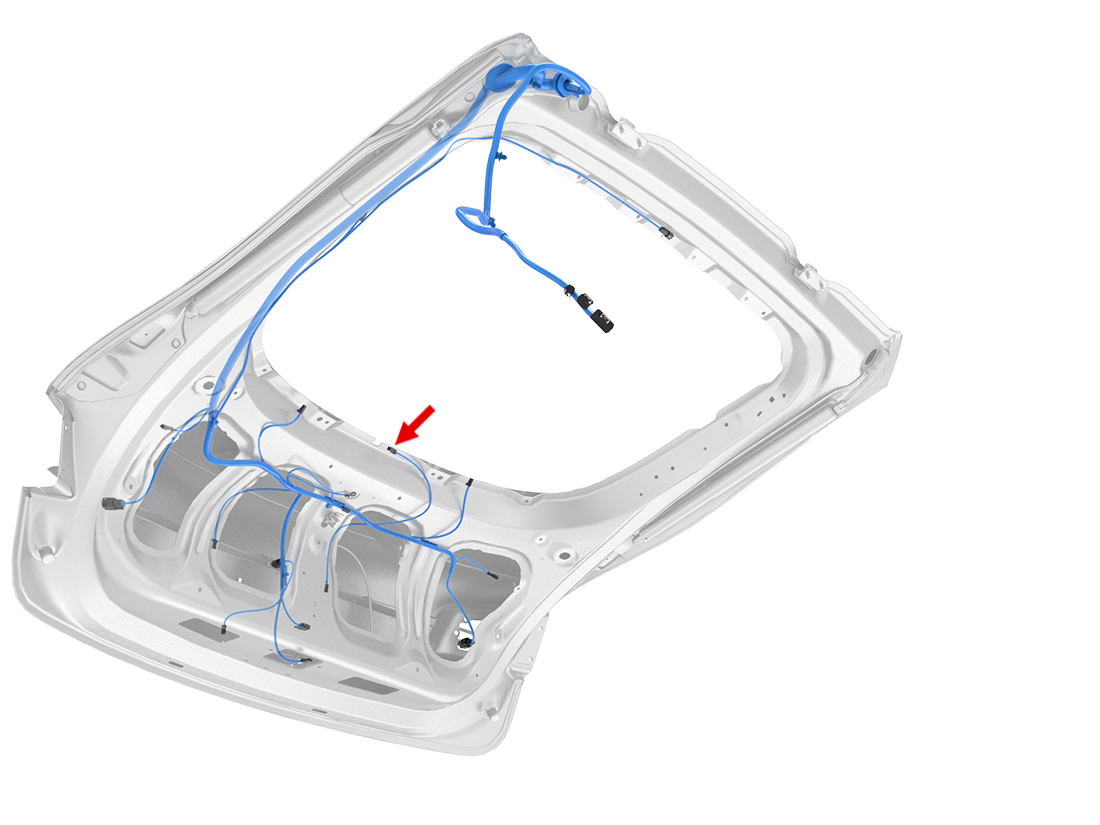

Location:
Connector Detail: AMP 174463-1
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | VT/WH | 0.35 | SN | X922F-8 | 173630-1 |
| 2 | WH | 0.35 | SN | X922F-16 | 173630-1 |
X398 - s-lhd-sop10
