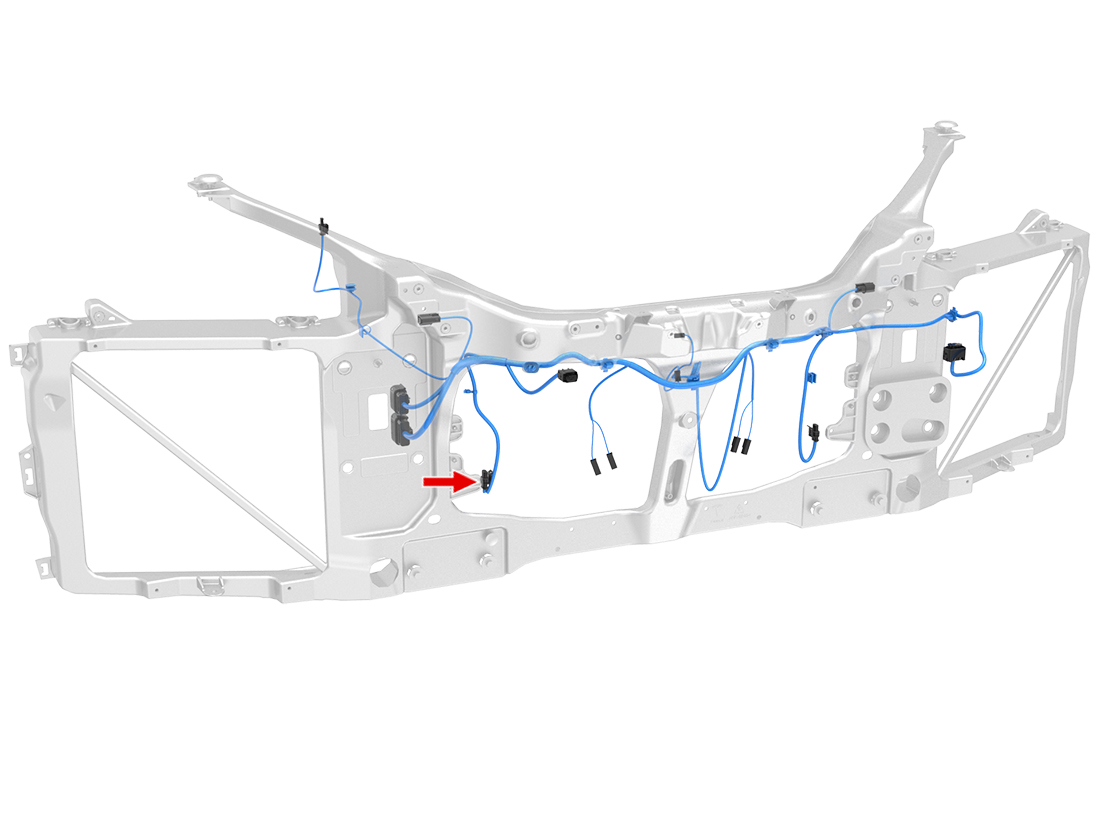

Location:
Connector Detail: AMP 282080-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | WH/BK | 0.5 | X966F-10 | |
| 2 | RD/VT | 0.5 | X966F-9 |
X399 - s-lhd-sop10
2012-2020 Model S Connector Reference
