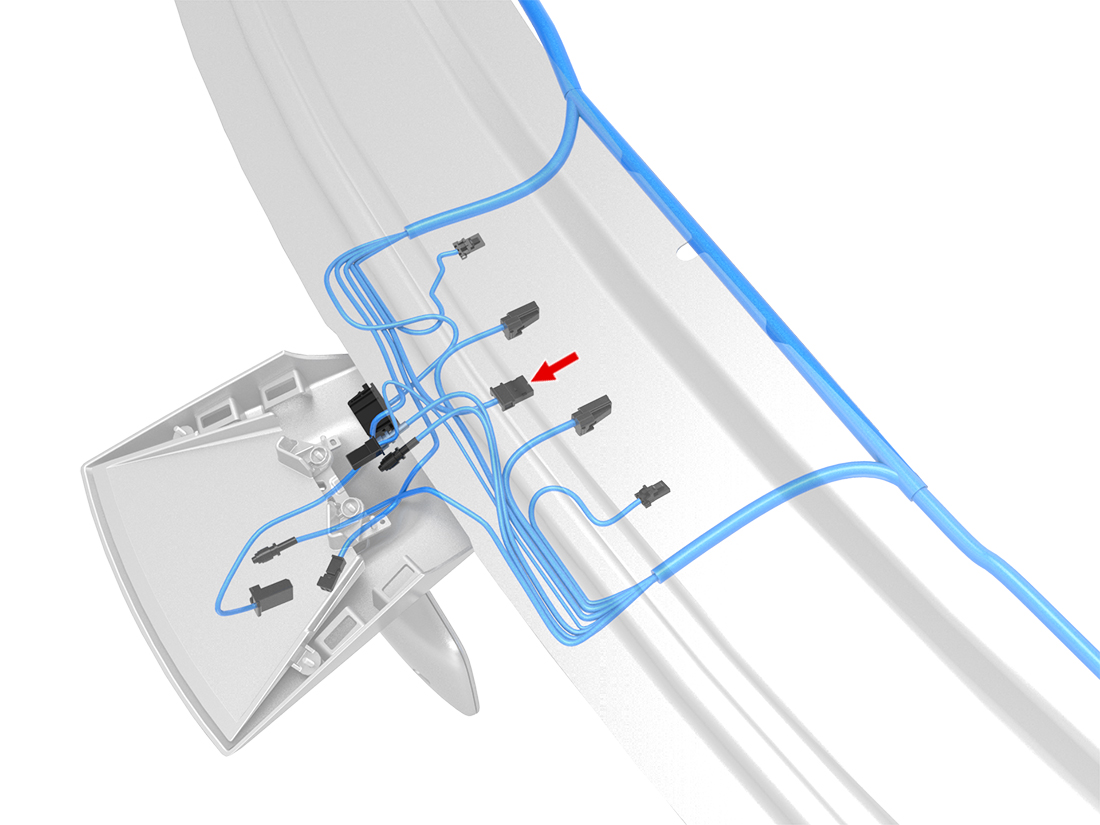

Location:

Connector Detail: AMP 1241634-1

Color: BK

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD/BK	0.35	SN	X968F-16	5-928999-1
2	GN/RD	0.35	SN	X968F-17	5-928999-1
3	BK	0.35	SN		5-928999-1
4
