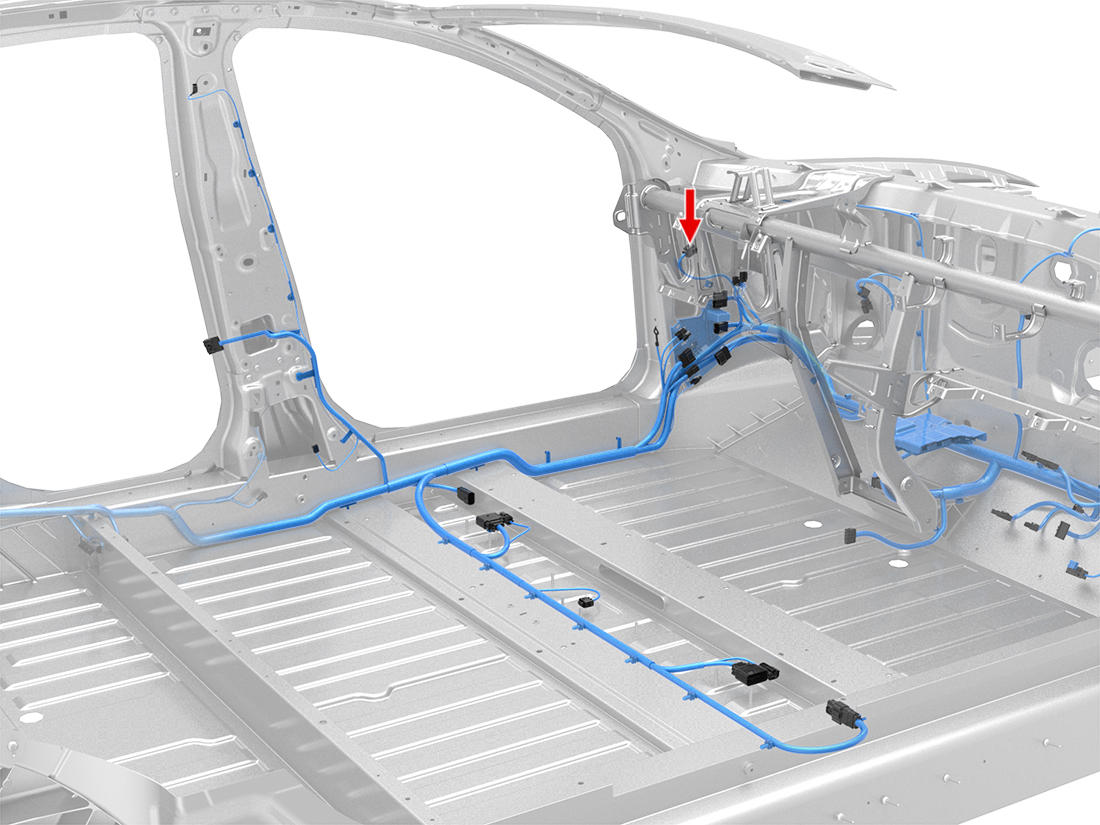

Location:
Connector Detail: SUMITOMO 6189-0133
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BN | 1 | SN | X405-10 | 7116-1420 |
| 2 | RD/WH | 0.35 | SN | X404-8 | 7116-1420 |
| 3 | WH/BU | 0.35 | SN | X404-7 | 7116-1420 |
| 4 | RD/WH | 1 | SN | X405-9 | 7116-1420 |
| 5 | GY | 0.35 | SN | 7116-1420 | |
| 6 | BN/WH | 0.35 | SN | 7116-1420 |
