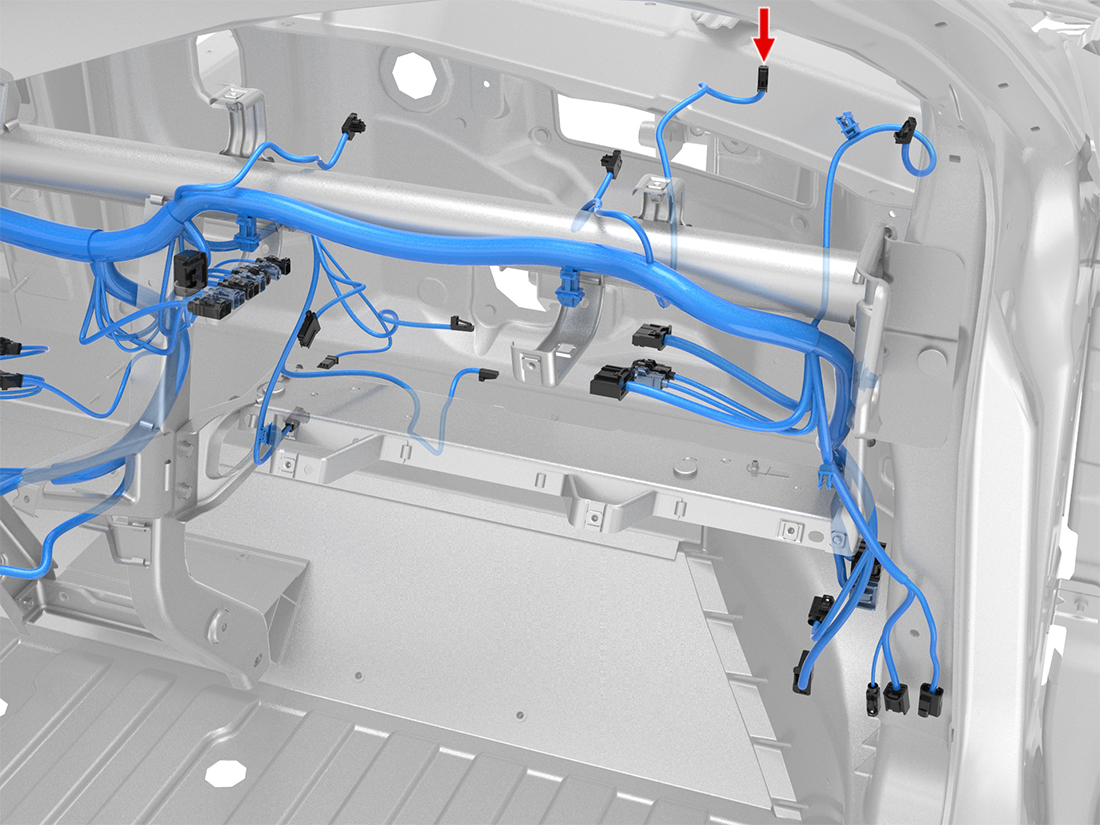

Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | OG | 0.5 | SN | X425-1 | 5-963715-1 |
| 2 | OG/BK | 0.5 | SN | X425-2 | 5-963715-1 |
X417 - s-lhd-sop10
2012-2020 Model S Connector Reference
