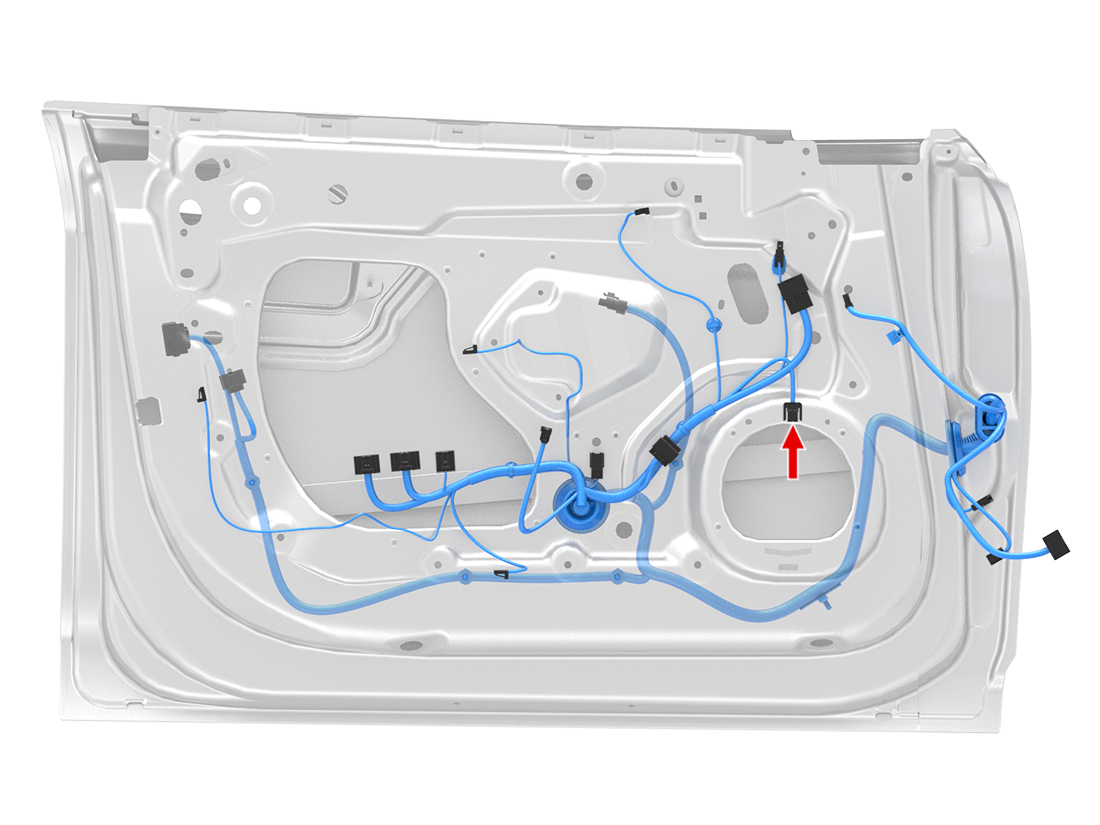

Location:
Connector Detail: AMP 365058-3
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BU/WH | 1.5 | SN | X943F-10 | 927768-1 |
| 2 | BU | 1.5 | SN | X943F-18 | 927768-1 |
X418 - s-lhd-sop10
2012-2020 Model S Connector Reference
