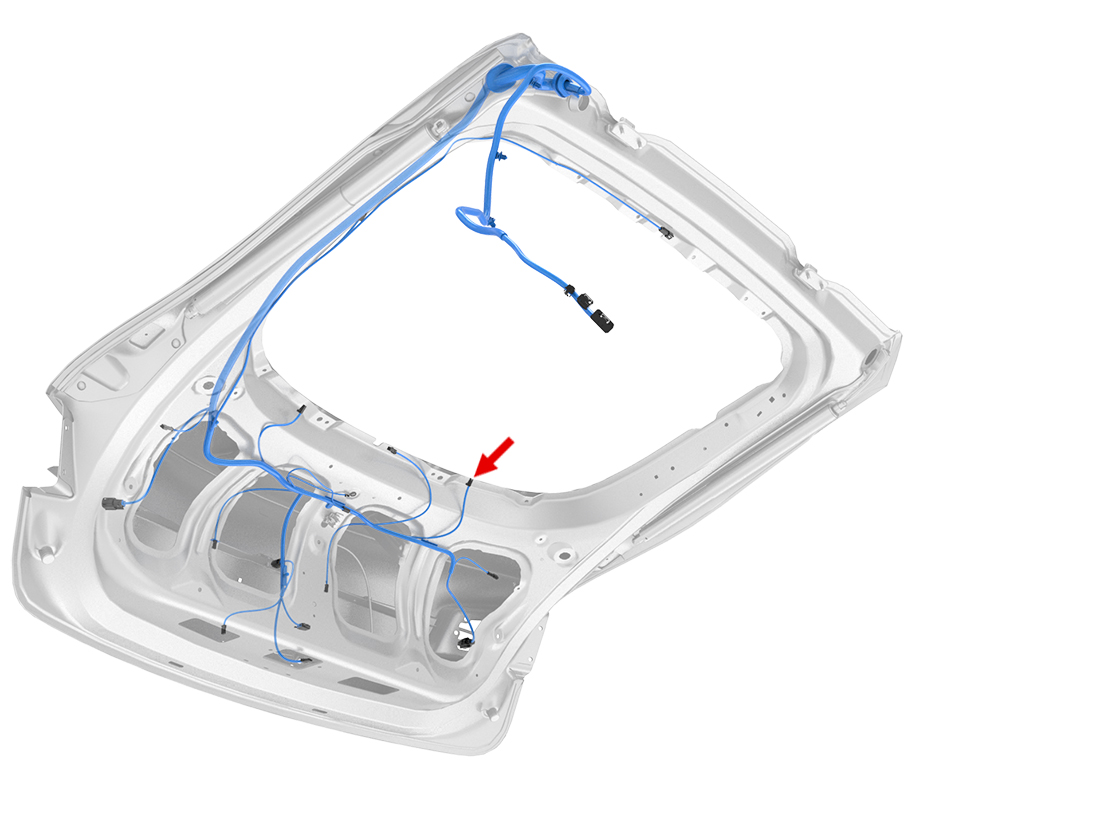

Location:
Connector Detail: AMP 1-1534113-1
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BU | 0.75 | SN | X922F-1 | 5-963715-1 |
| 2 | VT | 0.75 | SN | X922F-2 | 5-963715-1 |
X420 - s-lhd-sop10
2012-2020 Model S Connector Reference
