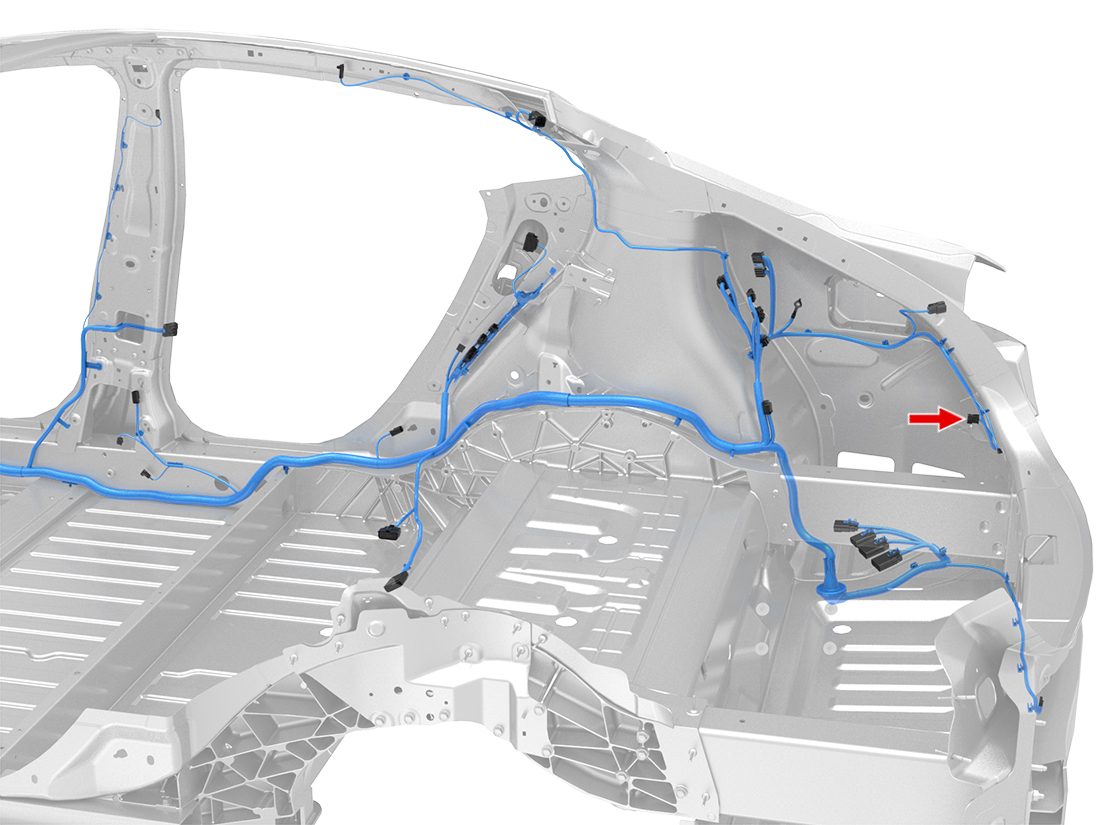

Location:
Connector Detail: MOLEX 34796-0401
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination |
| 1 | OG | 1.5 | X970M-1 | |
| 2 | VT | 1.5 | X970M-8 | |
| 3 | ||||
| 4 |
X422 - s-lhd-sop10
2012-2020 Model S Connector Reference
