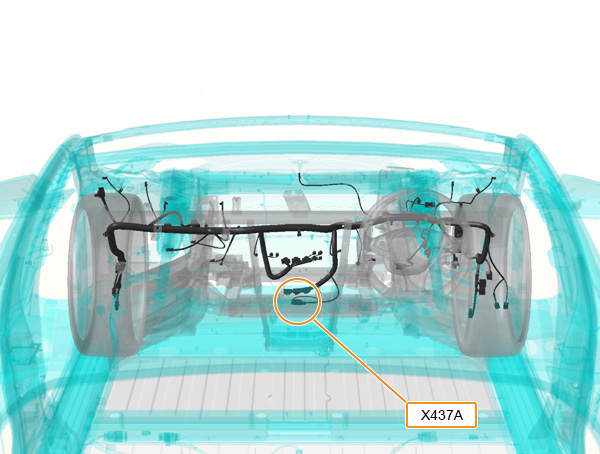

Location:

Connector Detail: SUMITOMO 6098-5620

Color: BU

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD	0.5	SN		8230-4925
2	VT/WH	0.35	SN	X772-6	8230-4925
3	VT	0.35	SN	X772-17	8230-4925
4
5
6	OG/BK	0.5	SN		8230-4925
7
8
9	BN/WH	0.35	SN	X773-20	8230-4925
10	BN	0.35	SN	X773-9	8230-4925
11
12
13	GN/WH	0.35	SN	X772-1	8230-4925
14	GN	0.35	SN	X772-12	8230-4925
15
16
17
18	RD/WH	0.35	SN	X772-8	8230-4925
19	RD	0.35	SN	X772-19	8230-4925
20	BK	0.5	SN		8230-4925
