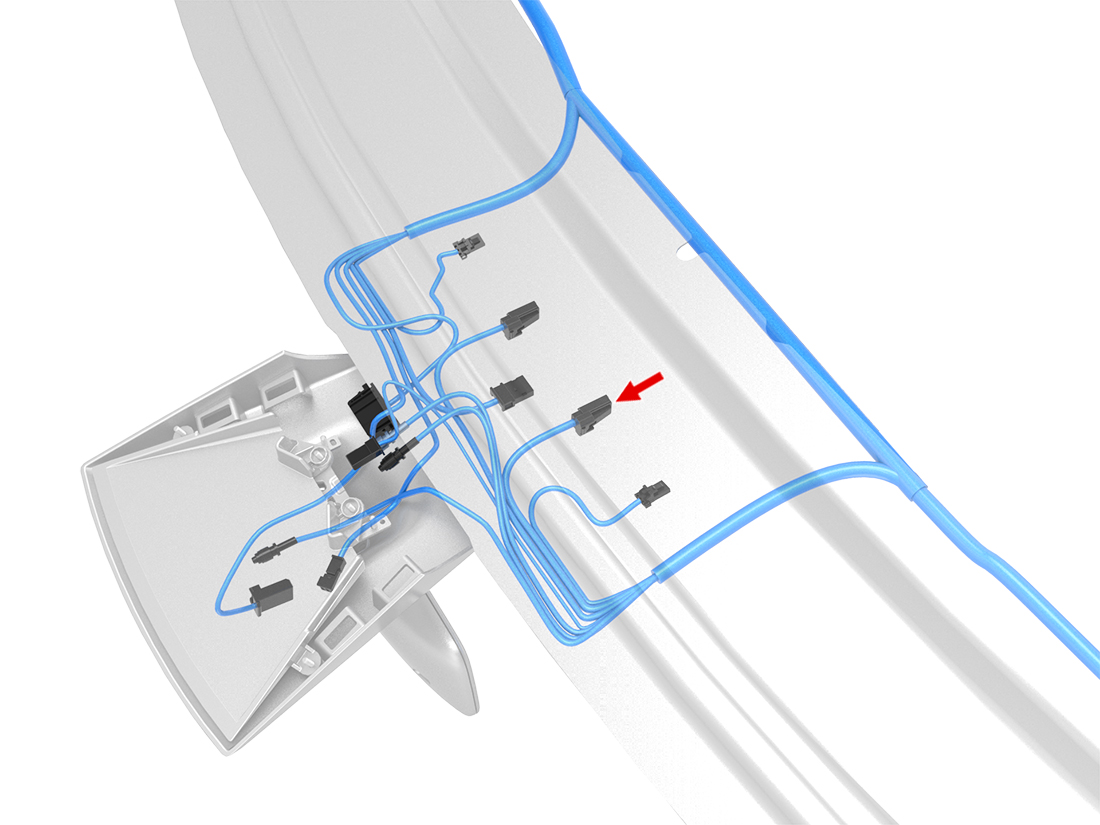

Location:

Connector Detail: MOLEX 31067-1011

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	SI	0.35	SN	X968F-14	1393367-1
2	VT/WH	0.35	SN	X968F-12	1393367-1
3	VT	0.35	SN	X968F-13	1393367-1
