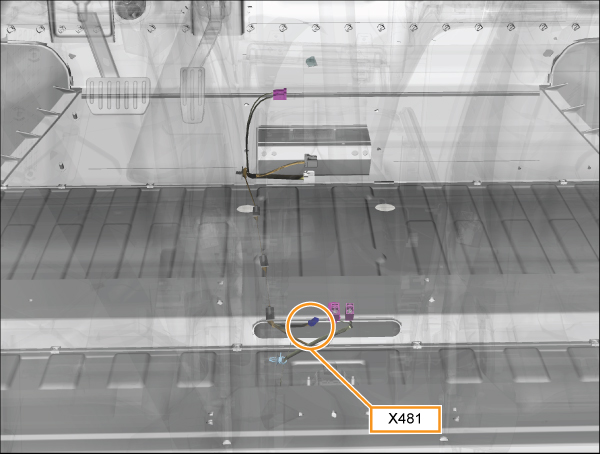

Location:

Connector Detail: JST 03R-JWPF-VSLE-S

Color: WH

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD	0.35	SN	X982M-3	SWPR-001T-P025
2	SI	0.35	SN	X982M-5	SWPR-001T-P025
3	BK	0.35	SN	X982M-4	SWPR-001T-P025
