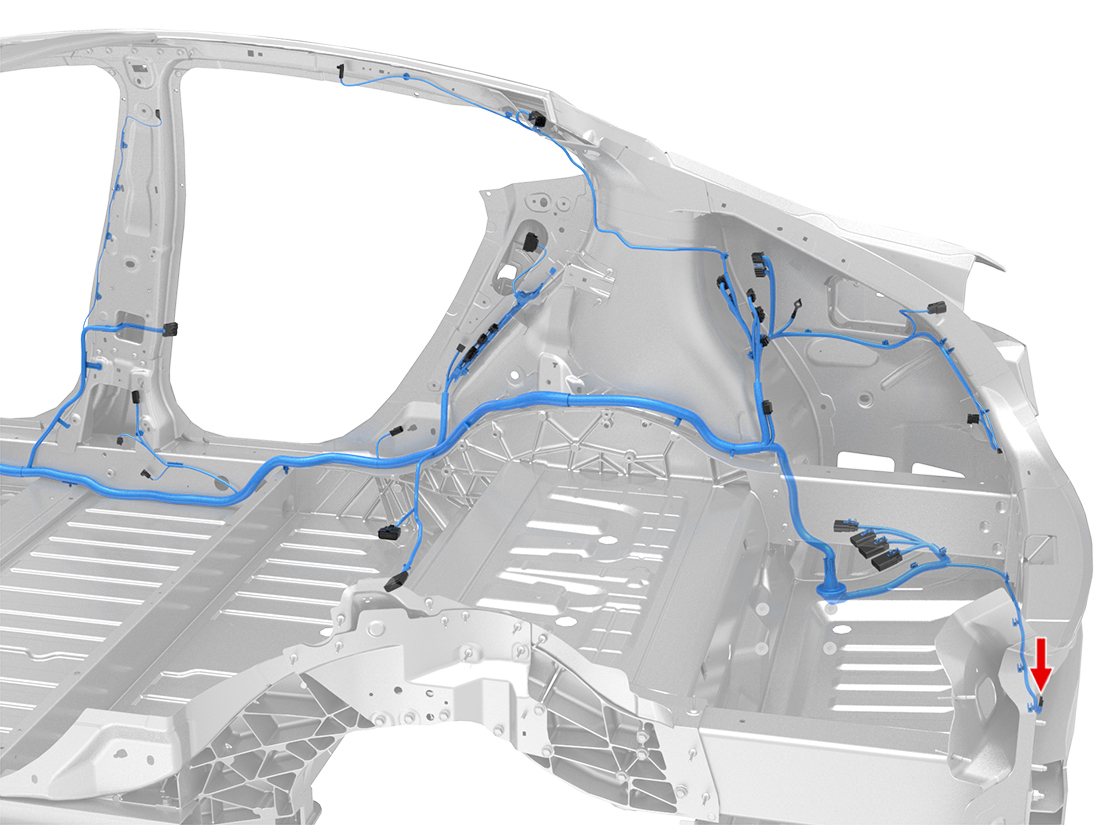

Location:

Connector Detail: JST 03R-JWPF-VSLE-S

Color: WH

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD	0.35	SN	X988F-8	SWPR-001T-P025
2	WH	0.35	SN		SWPR-001T-P025
3	BK	0.35	SN	X988F-21	SWPR-001T-P025
