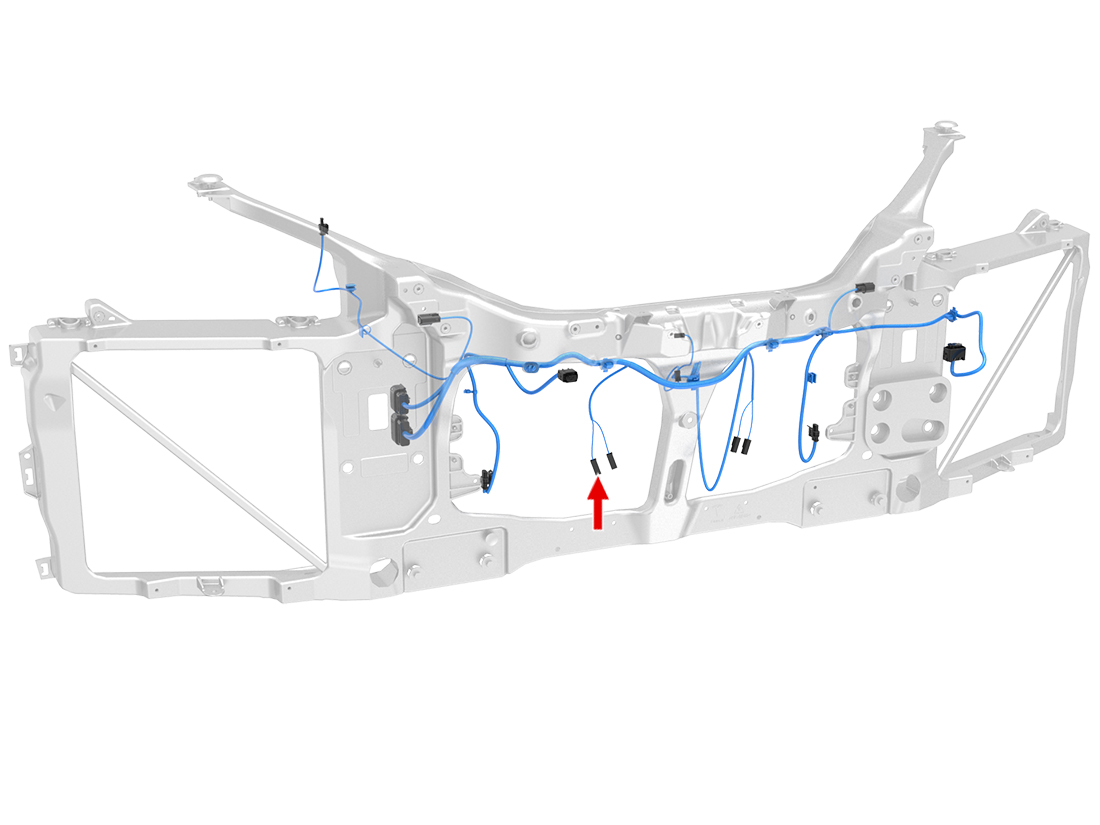

Location:
Connector Detail: AMP 171809-2
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BK | 0.75 | SN | X966F-5 | 170233-2 |
X484B - s-lhd-sop10
2012-2020 Model S Connector Reference
