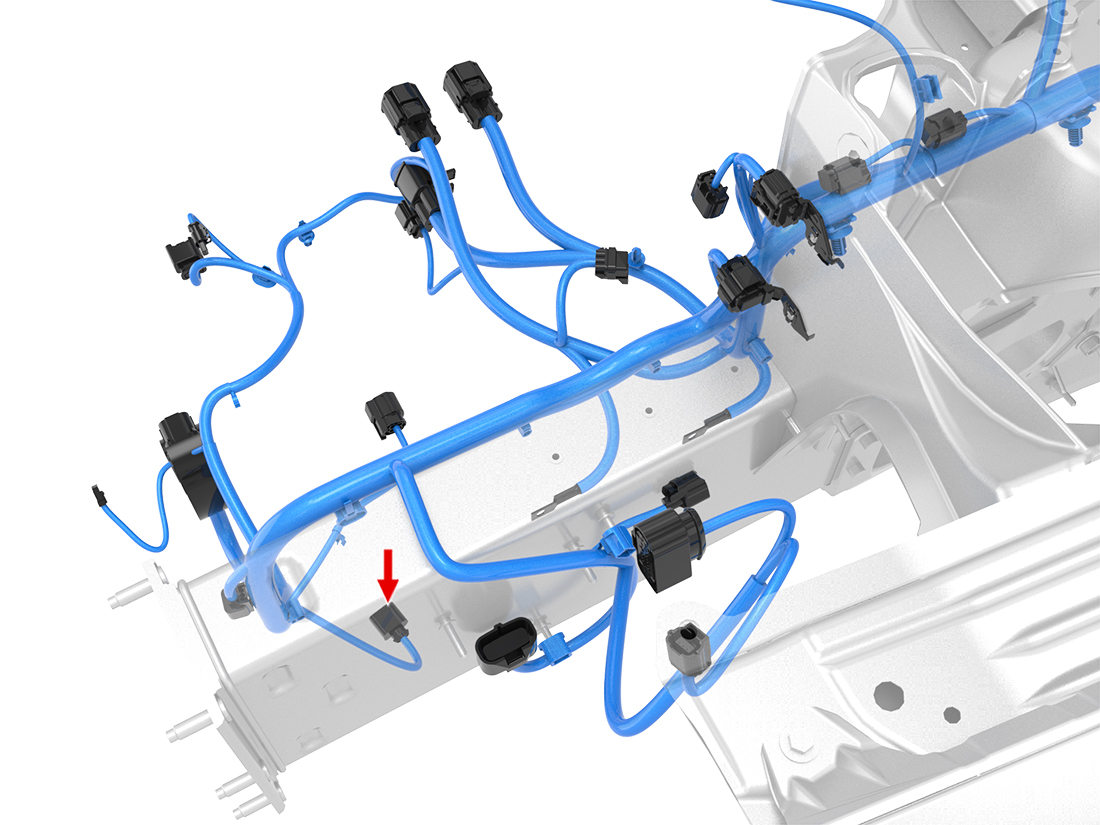

X487 - s-lhd-sop10

Location:

Connector Detail: FEP 42121300

Color: BK

Serviceability: Terminal Pigtail


Cavity	Color	Size	Plate	Destination	Terminal
1	GN	0.35	SN	X581-7	969005-2
2	BK	0.35	SN	G500-1	969005-2
3	RD/BU	0.35	SN	X561-32	969005-2
