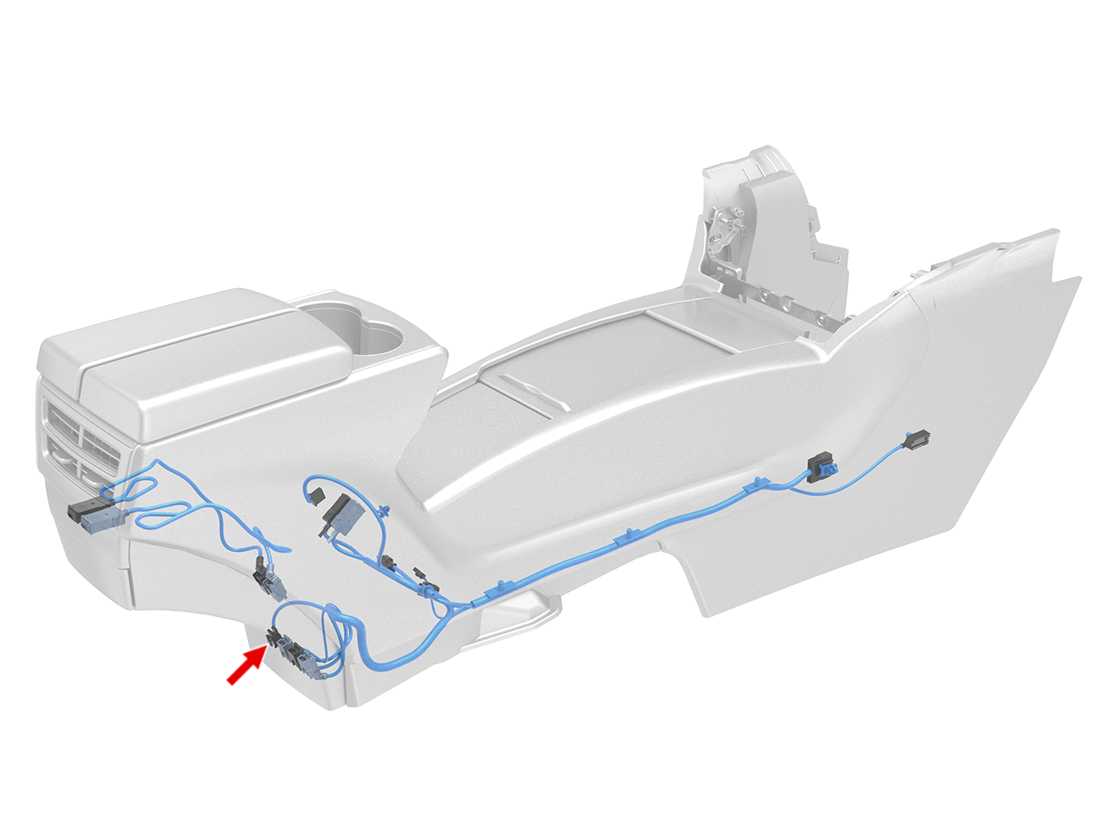

Location:
Connector Detail: MOLEX 31068-1010
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | RD | 0.75 | SN | X577-3 | 1393366-1 |
| 2 | |||||
| 3 | |||||
| 4 | BK/WH | 0.75 | SN | X982M-10 | 1393366-1 |
X522 - s-lhd-sop10
2012-2020 Model S Connector Reference
