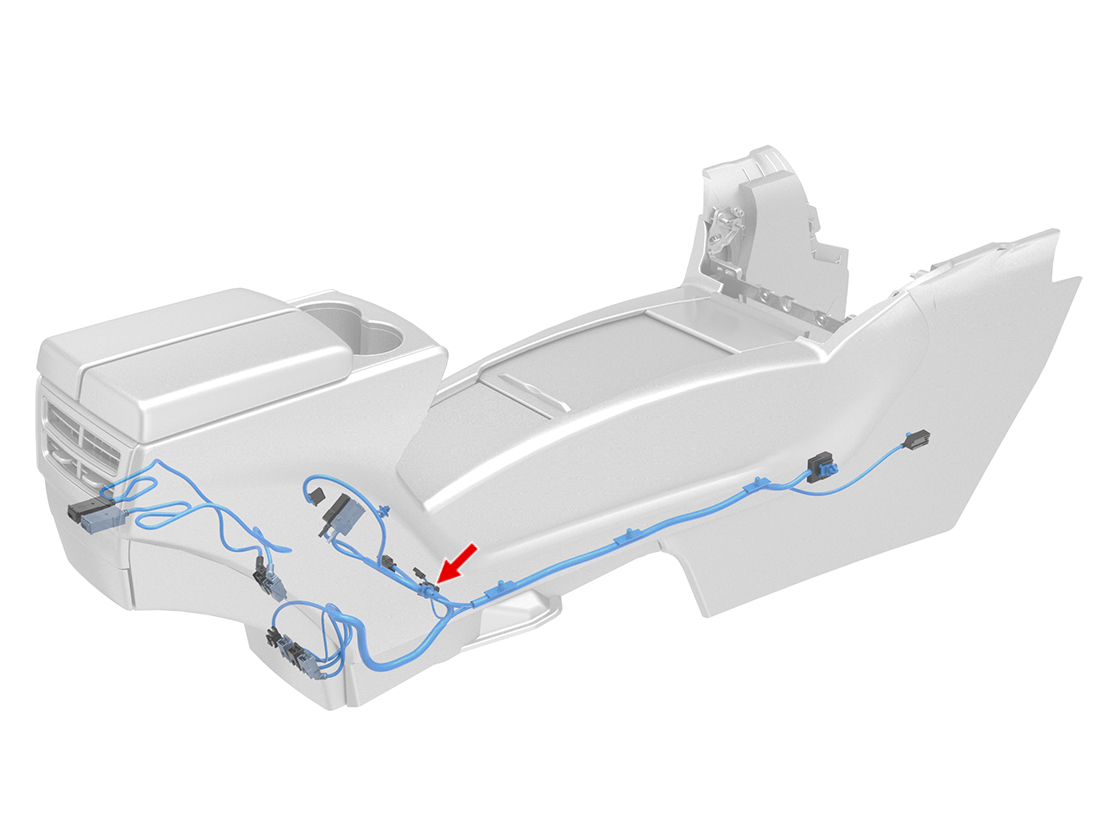

Location:
Connector Detail: YAZAKI 7283-6445-40
Color: GY
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BK | 1 | SN | X982M-18 | 7116-4271-02 |
| 2 | RD | 1 | SN | X982F-11 | 7116-4271-02 |
X523 - s-lhd-sop10
2012-2020 Model S Connector Reference
