X574 - s-lhd-sop10

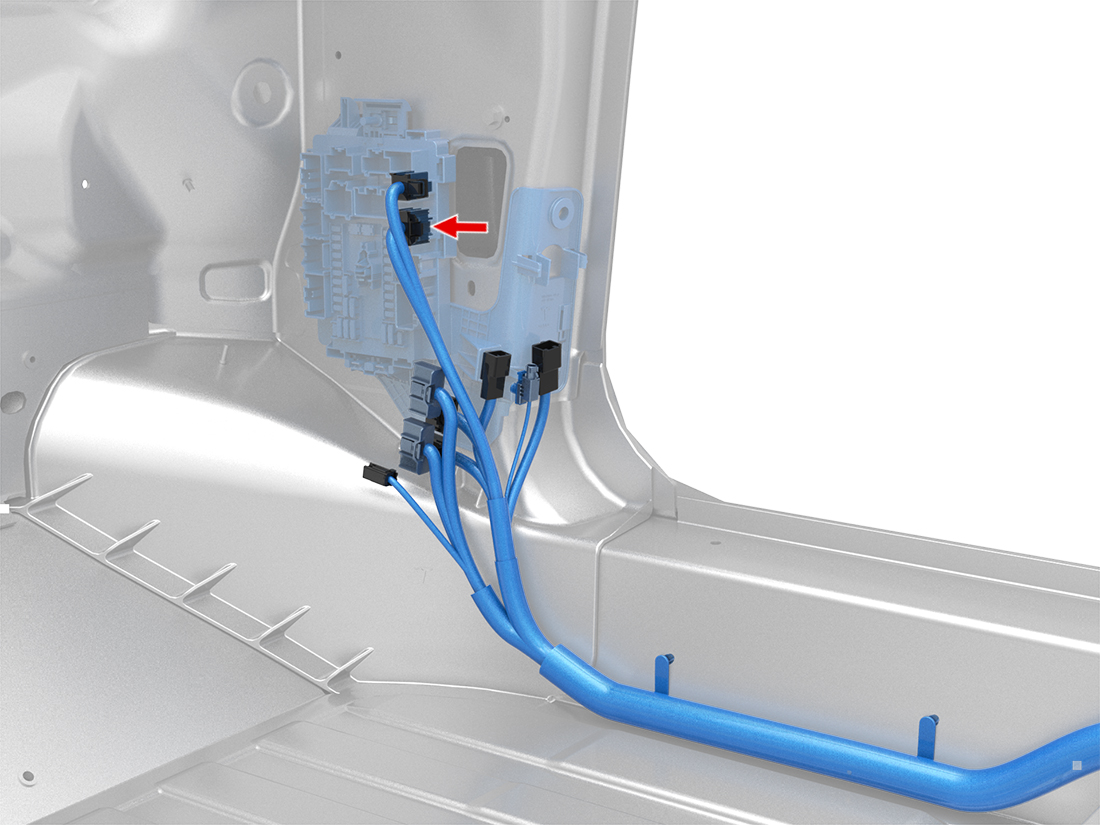

Location:

Connector Detail: DELPHI 13544532

Color: GN

Serviceability: Terminal Pigtail


Cavity	Color	Size	Plate	Destination	Terminal
1
2
3	RD/WH	2	SN	X101-9	13544537
4
5
6	GY	2	SN	X397-8	13544537
7	RD/GN	1.5	SN	X946M-1	13544537
8
