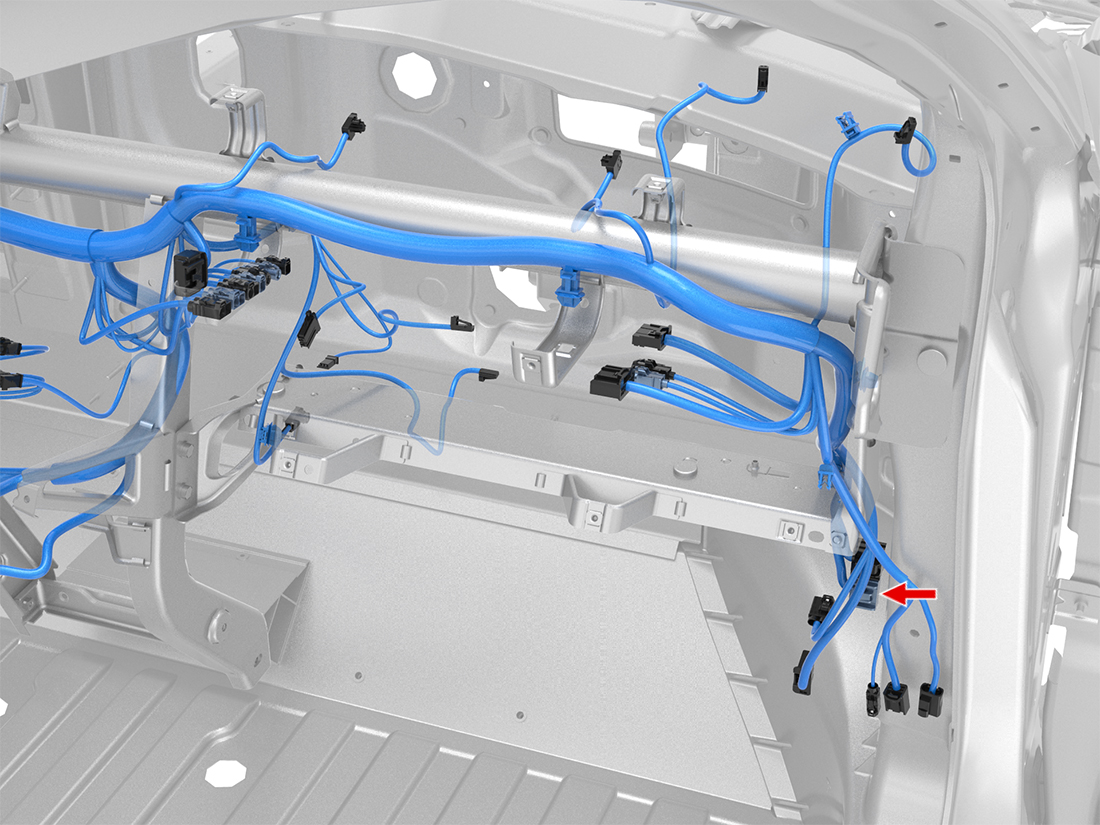

Location:

Connector Detail: DELPHI 13520383

Color: GY

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	BN/WH	0.35	SN	X429-13	13526680
2	GN/RD	0.35	SN	X968M-17	13526680
3	RD/BK	0.35	SN	X968M-16	13526680
4	RD/WH	0.5	SN	X430-12	13526680
5	GY	0.35	SN	X492-3	13526680
6	RD/BU	0.35	SN	X968F-7	13526680
7	RD/VT	0.35	SN	X434-17	13526680
8	RD/VT	0.35	SN	X958F-1	13526680
9	WH/BU	0.35	SN	X430-13	13526680
10	BU/WH	0.35	SN	X281-1	13526680
11	BU/WH	0.35	SN	X280-1	13526680
12	BU/WH	0.35	SN	X429-1	13526680
13	RD	0.5	SN		13526680
14	RD/GN	0.35	SN	X440-1	13526680
15	BU	0.35	SN	X430-3	13526680
16	RD/GY	0.35	SN	X160-4	13526680
