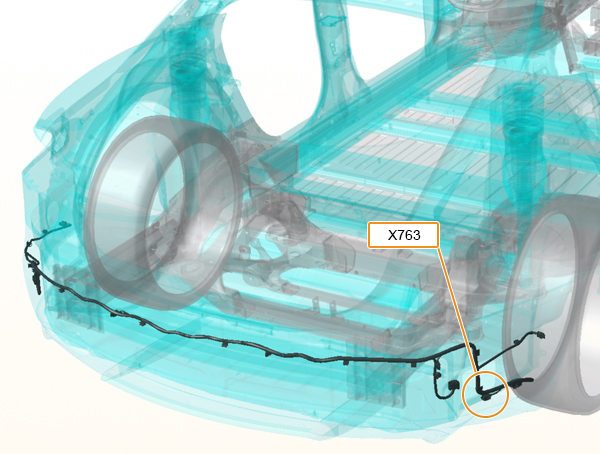

Location:
Connector Detail: YAZAKI 7283-2764-30
Color: BK
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | VT | 0.5 | SN | X148-3 | 7116-4416-02 |
| 2 | VT | 0.5 | SN | X147-3 | 7116-4416-02 |
| 3 | VT | 0.5 | SN | X909F-4 | 7116-4416-02 |
| 4 | VT/WH | 0.5 | SN | X148-2 | 7116-4416-02 |
| 5 | VT/WH | 0.5 | SN | X147-2 | 7116-4416-02 |
| 6 | VT/WH | 0.5 | SN | X909F-3 | 7116-4416-02 |
