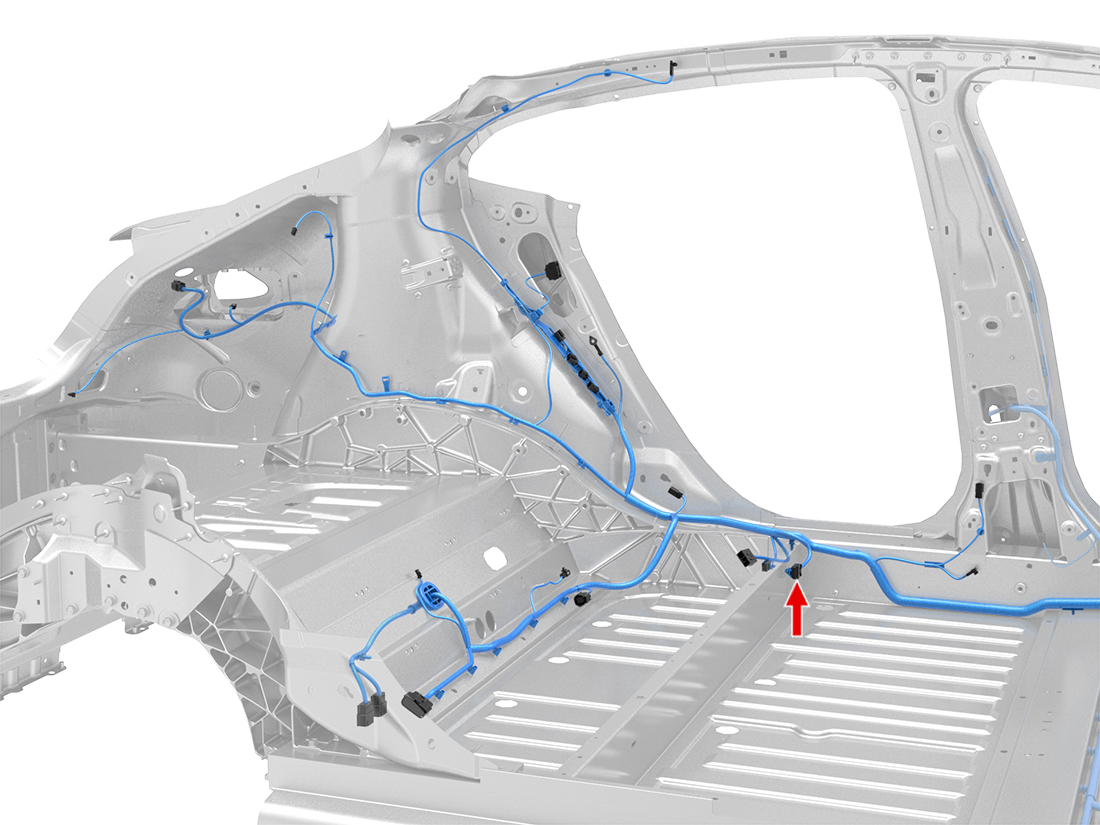

Location:

Connector Detail: SUMITOMO 6098-3927

Color: BU

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD/WH	0.35	SN	X036-10	8100-3625
2	RD/WH	0.35	SN	X976F-4	8100-3625
3
4	RD/WH	0.35	SN	X049-2	8100-3625
5	GN/WH	0.35	SN	X915M-2	8100-3625
6	GN/WH	0.35	SN	X775-19	8100-3625
7	GN/WH	0.35	SN	X976F-5	8100-3625
8	VT/WH	0.35	SN	X911M-9	8100-3625
9	VT/WH	0.35	SN	X776-3	8100-3625
10
11	VT/WH	0.35	SN	X916M-9	8100-3625
12	RD	0.35	SN	X036-9	8100-3625
13	RD	0.35	SN	X976F-14	8100-3625
14
15	RD	0.35	SN	X049-1	8100-3625
16	GN	0.35	SN	X915M-3	8100-3625
17	GN	0.35	SN	X775-8	8100-3625
18	GN	0.35	SN	X976F-15	8100-3625
19	VT	0.35	SN	X911M-10	8100-3625
20	VT	0.35	SN	X776-14	8100-3625
21
22	VT	0.35	SN	X916M-10	8100-3625
