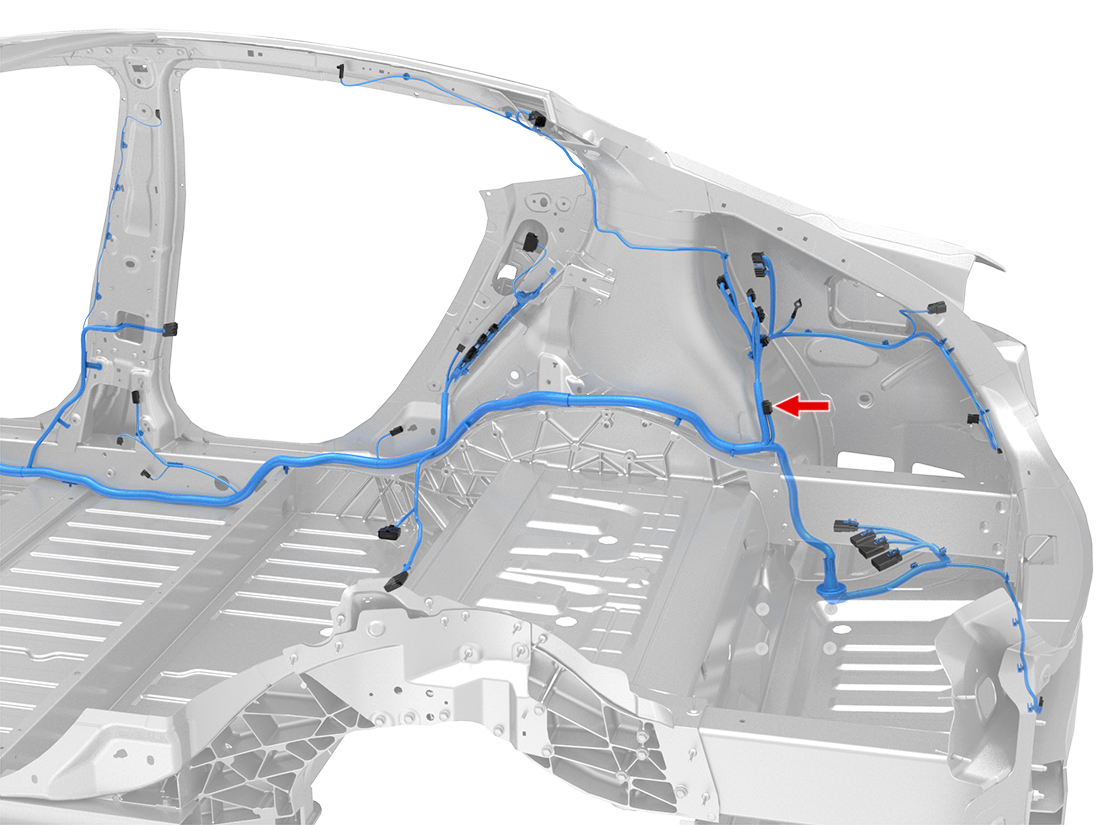

Location:

Connector Detail: SUMITOMO 6098-3926

Color: BK

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1
2	RD/WH	0.5	SN	X932M-4	8100-3625
3	RD/WH	0.35	SN	X976M-4	8100-3625
4	RD/WH	0.35	SN	X102-1	8100-3625
5	RD/WH	0.5	SN	X042A-14	8100-3625
6	RD/WH	0.35	SN	X977F-3	8100-3625
7	GN/WH	0.35	SN	X102-3	8100-3625
8	GN/WH	0.35	SN	X141-3	8100-3625
9	GN/WH	0.35	SN	X976M-5	8100-3625
10	GN/WH	0.35	SN	X130B-24	8100-3625
11
12
13	RD	0.5	SN	X932M-10	8100-3625
14	RD	0.35	SN	X976M-14	8100-3625
15	RD	0.35	SN	X102-11	8100-3625
16	RD	0.5	SN	X042A-4	8100-3625
17	RD	0.35	SN	X977F-14	8100-3625
18	GN	0.35	SN	X102-13	8100-3625
19	GN	0.35	SN	X141-4	8100-3625
20	GN	0.35	SN	X976M-15	8100-3625
21	GN	0.35	SN	X130B-23	8100-3625
22
