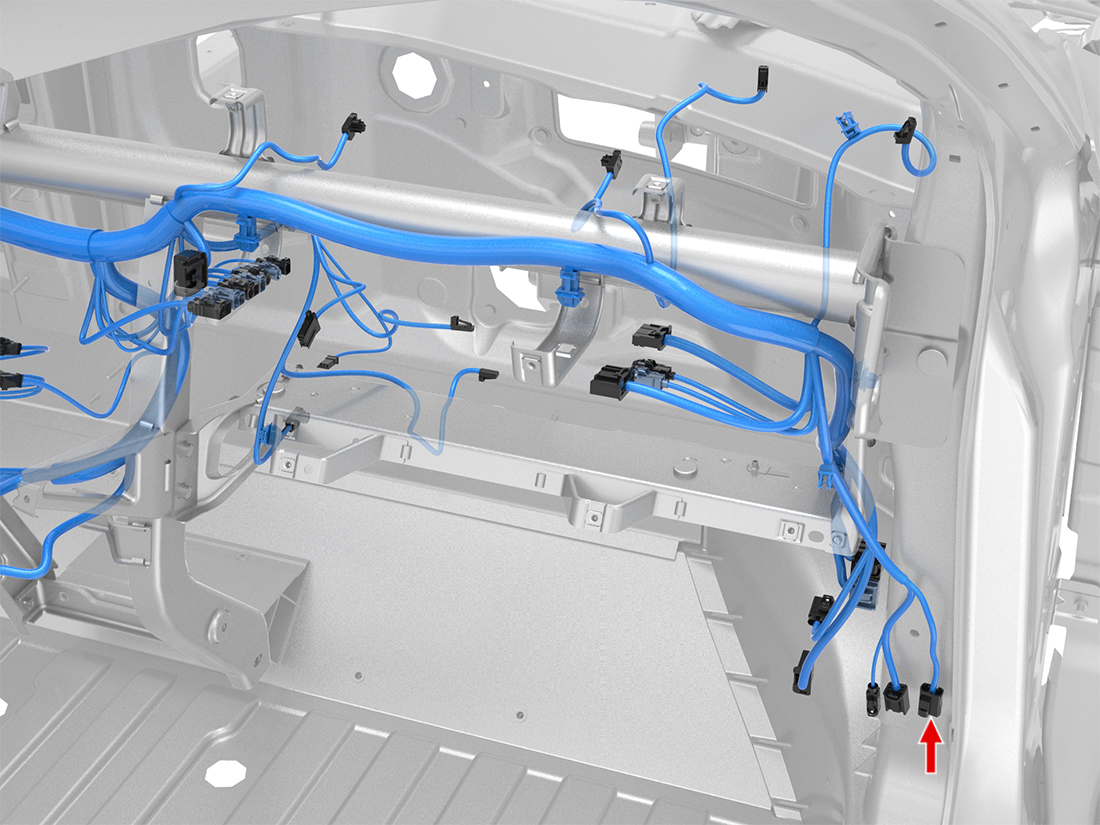

Location:
Connector Detail: ROSENBERGER 59Z067-C00-D
Color: BO
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BK | D302 | AU | X804-1 | 59K16B-1M4T4 |
| 2 | BK | D302 | AU | X802-2 | 59K16B-1M4T4 |
X811F - s-lhd-sop10
2012-2020 Model S Connector Reference
