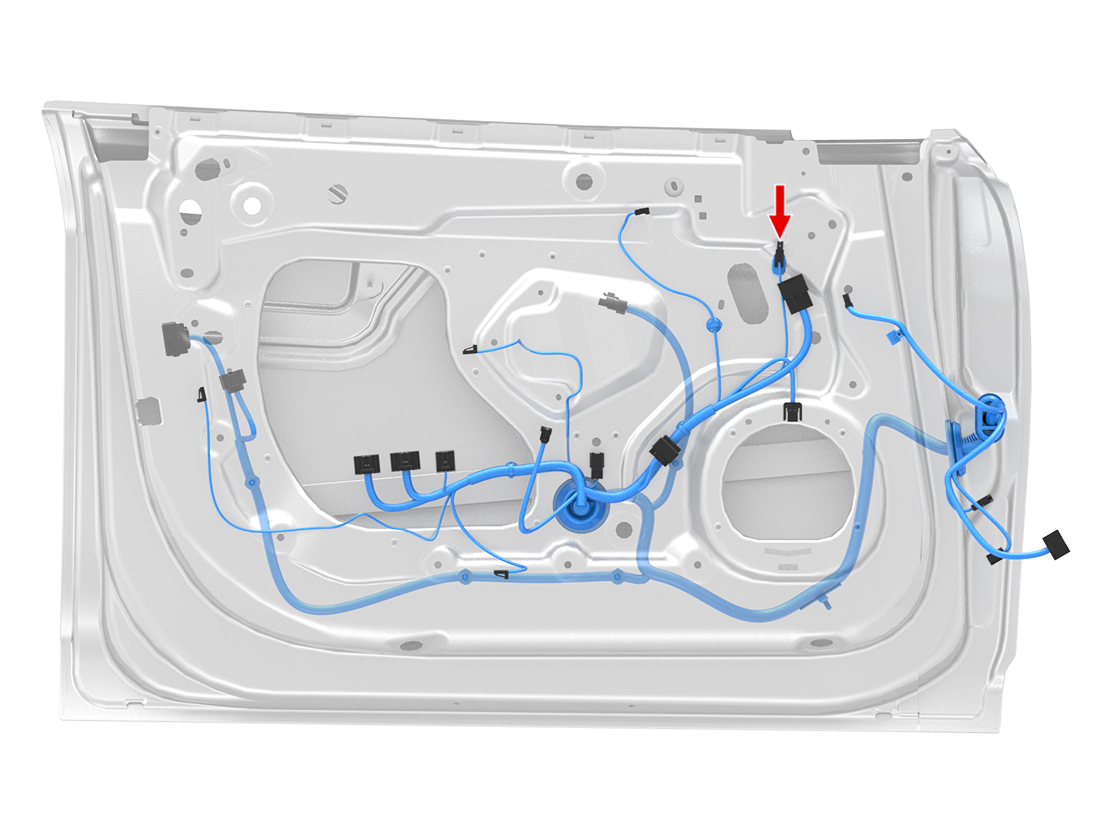

Location:
Connector Detail: ROSENBERGER 59Z118-C00-D
Color: BO
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | BK | RG316 | AU | X809F-1 | 59S16A-102T4 |
X816 - s-lhd-sop10
