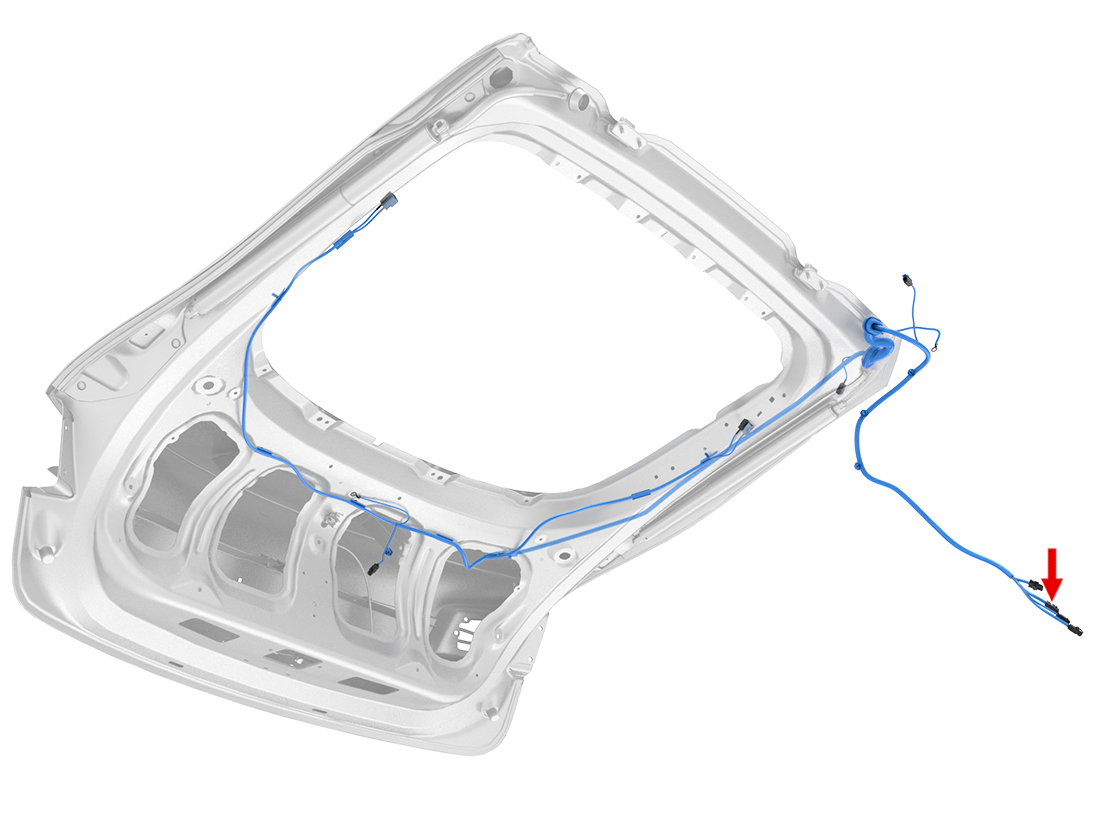

Location:
Connector Detail: ROSENBERGER 59Z116-000-A
Color: BK
Serviceability: Cable Subassembly
| Cavity | Color | Size | Plate | Destination |
| 1 | BK | D302 | X825-1 | |
| 2 | BK | D302 | X822-1 |
X824M - s-lhd-sop10
