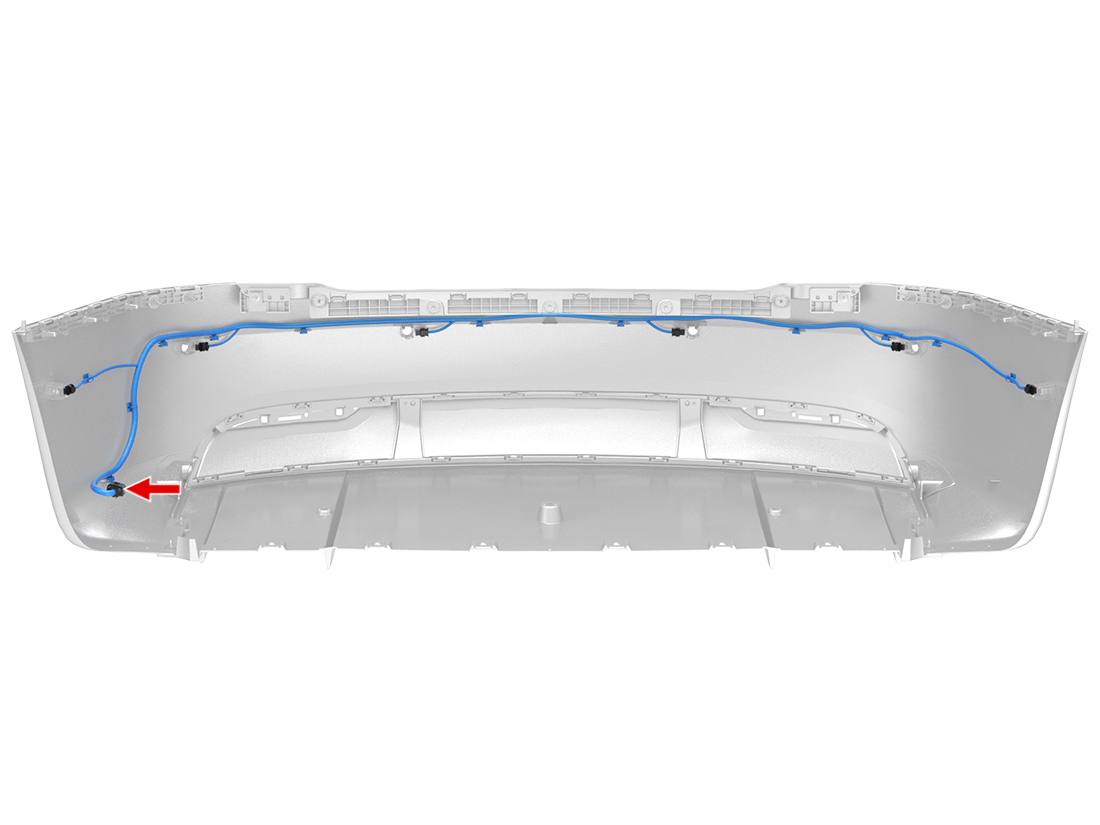

Location:

Connector Detail: MOLEX 33472-1201

Color: BK

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD/YE	0.5	SN		33012-3003
2	BK	0.5	SN		33012-3003
3	VT/WH	0.5	SN	X763-6	33012-3003
4	VT	0.5	SN	X763-3	33012-3003
5	GN/WH	0.35	SN		33012-3003
6	RD/WH	0.35	SN	X121A-2	33012-3003
7	OG	0.35	SN	X122A-2	33012-3003
8	WH	0.35	SN	X909M-8	33012-3003
9	YE/WH	0.35	SN	X124A-2	33012-3003
10	BK/WH	0.35	SN		33012-3003
11	BU/WH	0.35	SN	X129B-5	33012-3003
12	BN	0.35	SN	X135A-2	33012-3003
