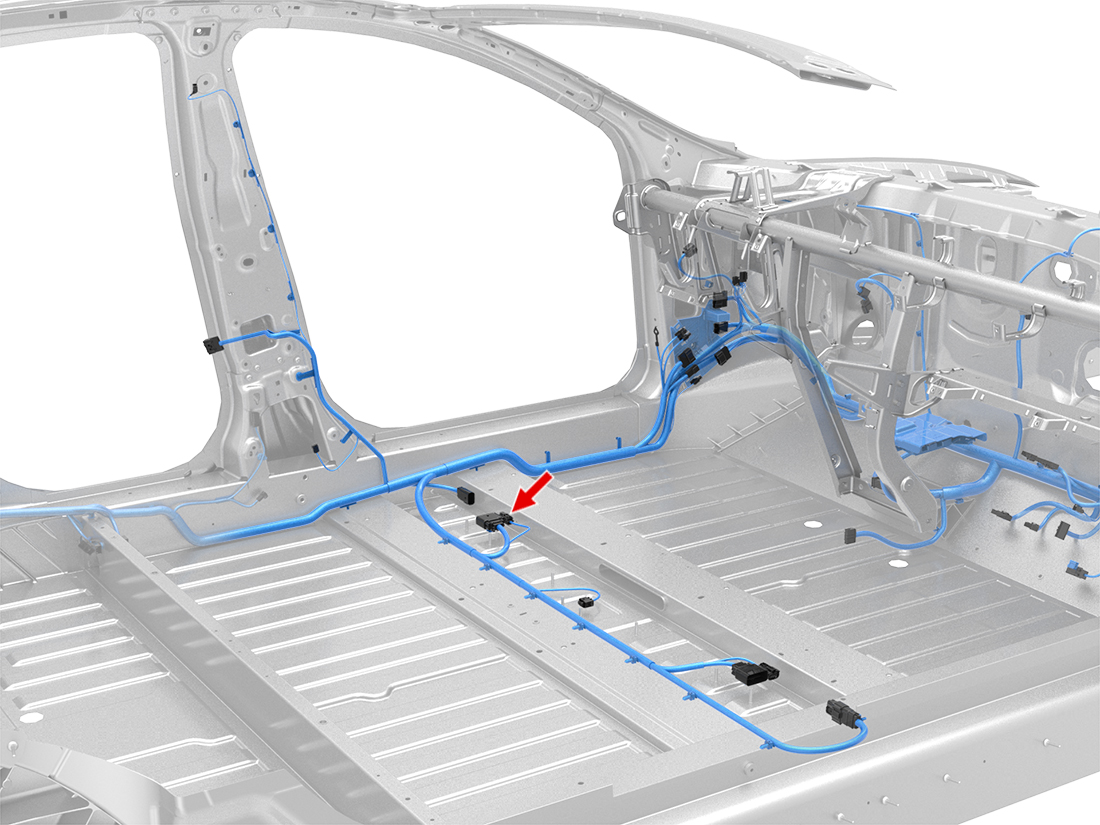

Location:

Connector Detail: MOLEX 33471-0492

Color: YL

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD	0.5	AU	X201-25	33001-3005
2	GY/WH	0.5	AU	X201-26	33001-3005
3	BK	0.5	AU	G660-1	33001-3005
4
