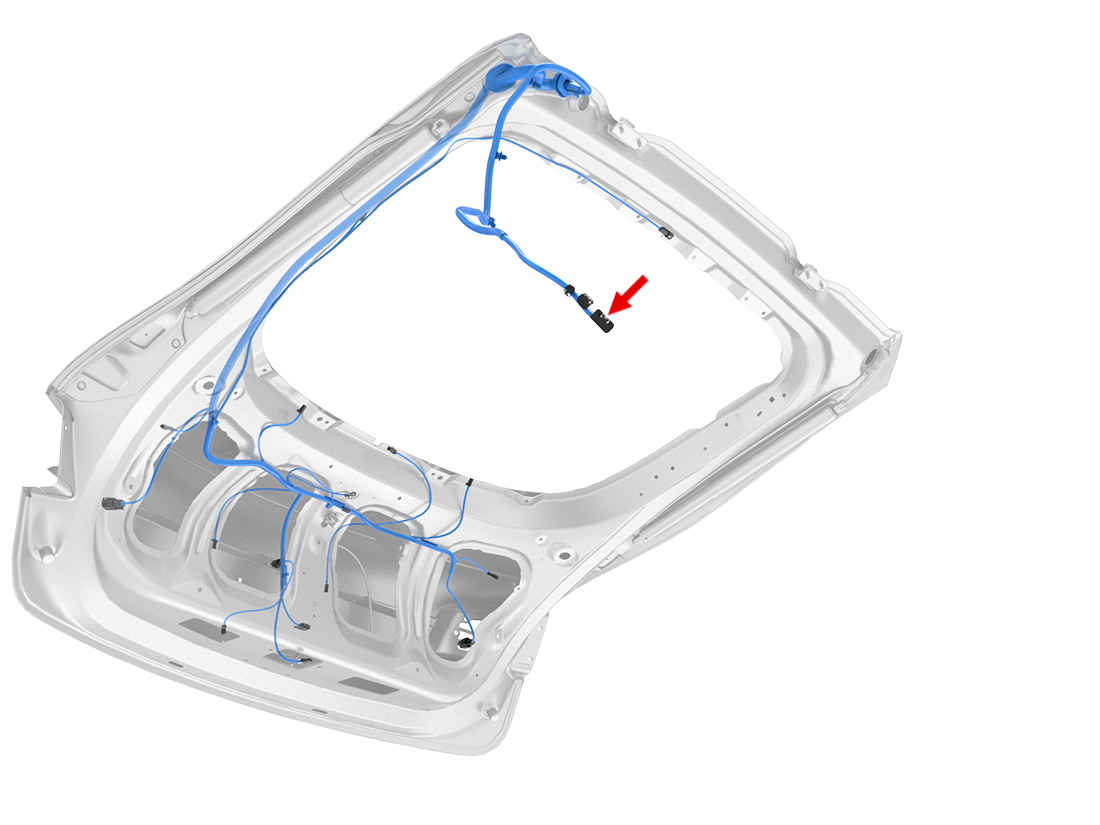

Location:

Connector Detail: SUMITOMO 6098-5604

Color: WH

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	BU	0.75	SN	X420-1	8100-3625
2	VT	0.75	SN	X420-2	8100-3625
3	GY/WH	0.35	SN	X389-1	8100-3625
4	WH/BK	0.35	SN		8100-3625
5	BN	0.35	SN	X396-1	8100-3625
6	OG/BK	0.35	SN	X394-3	8100-3625
7
8	VT/WH	0.35	SN	X398-1	8100-3625
9
10
11	GN	0.75	SN	X421-1	8100-3625
12	BK	0.75	SN	X421-2	8100-3625
13	GY	0.35	SN	X390-1	8100-3625
14	BN/WH	0.35	SN	X396-2	8100-3625
15	OG	0.35	SN	X394-1	8100-3625
16	WH	0.35	SN	X398-2	8100-3625
17
18
