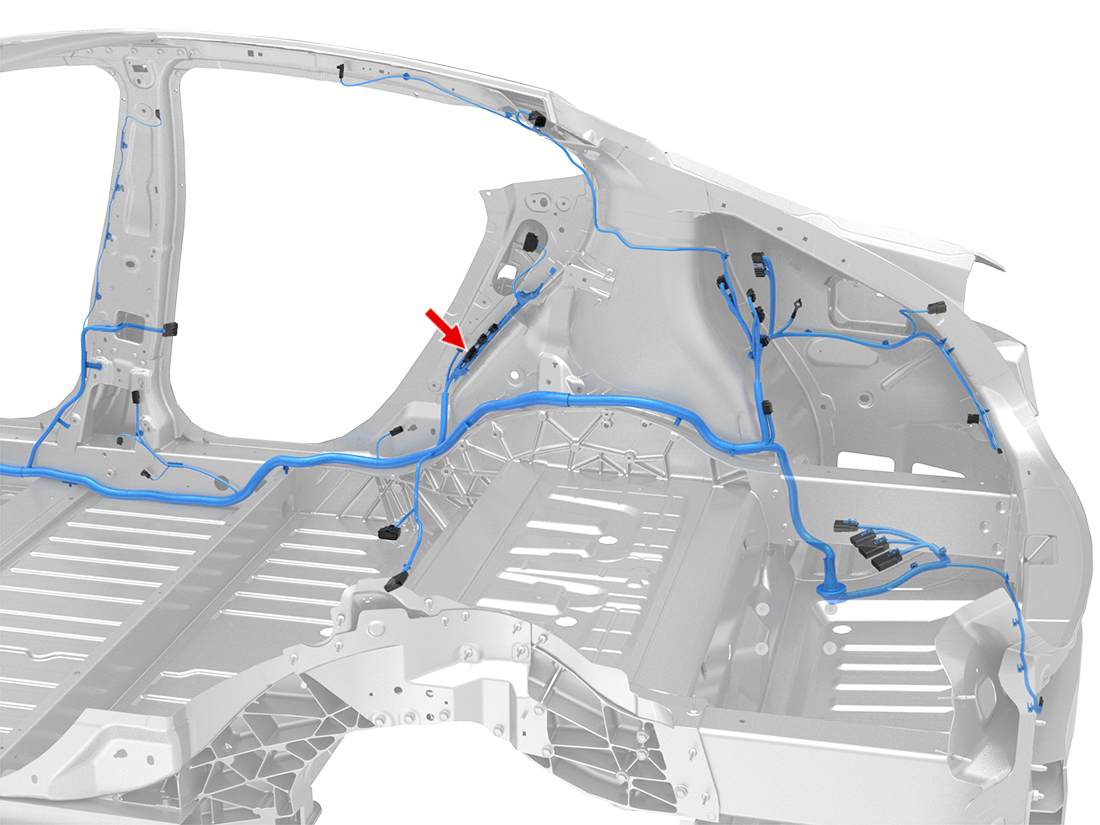

Location:

Connector Detail: SUMITOMO 6098-5594

Color: WH

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	BU	0.75	SN	X970M-6	8100-3623
2	VT	0.75	SN	X970M-11	8100-3623
3	GY/WH	0.35	SN	X393-17	8100-3623
4	WH/BK	0.35	SN	X397-1	8100-3623
5	BN	0.35	SN	X397-5	8100-3623
6	OG/BK	0.35	SN	X393-2	8100-3623
7
8	VT/WH	0.35	SN	X393-1	8100-3623
9
10
11	GN	0.75	SN	X970M-7	8100-3623
12	BK	0.75	SN	X970M-12	8100-3623
13	GY	0.35	SN	X393-18	8100-3623
14	BN/WH	0.35	SN	X397-6	8100-3623
15	OG	0.35	SN	X393-6	8100-3623
16	WH	0.35	SN	X393-11	8100-3623
17
18
