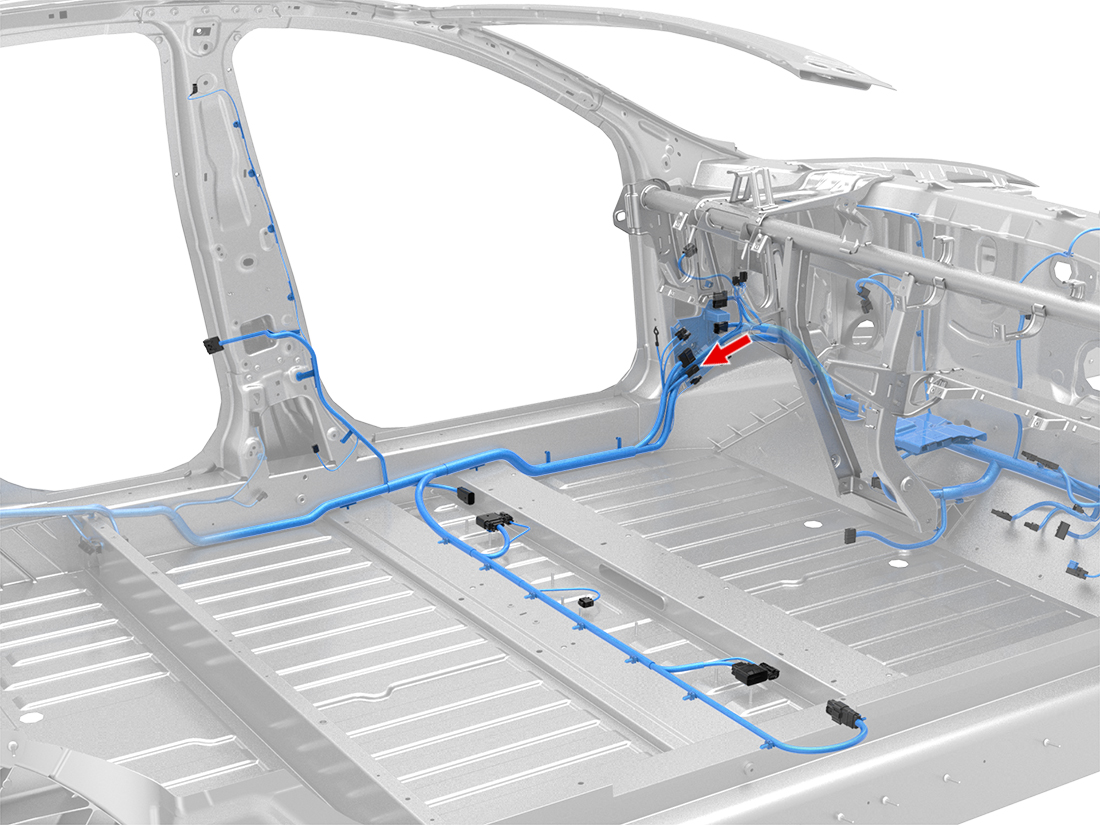

Location:
Connector Detail: SUMITOMO 6098-3869
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
| 1 | WH | 0.35 | SN | X945M-8 | 8100-3623 |
| 2 | BN/WH | 0.35 | SN | X945M-7 | 8100-3623 |
| 3 | OG | 0.35 | SN | X362-3 | 8100-3623 |
| 4 | BK/GY | 0.35 | SN | X362-4 | 8100-3623 |
| 5 | |||||
| 6 | VT | 0.35 | SN | X945M-9 | 8100-3623 |
| 7 | GY/WH | 0.35 | SN | X362-7 | 8100-3623 |
| 8 | GY | 0.35 | SN | X945M-16 | 8100-3623 |
| 9 | GN/WH | 0.35 | SN | X945M-12 | 8100-3623 |
| 10 |
